| MOQ: | 1pcs |
| Delivery Period: | within 3days |
| Payment Method: | T/T, Western Union, MoneyGram |
| Supply Capacity: | 10pcs |
feature
1.User friendlymembrance control panel
2.Enclosed design with turn limiter ensures highest level of safety
3.Top cover can be openedfor easy access to hardware during maintance
4.Parallel and smooth width adjustment (leadscrew)
5.steady and precise lifting (retractable motor)
6.Minimize transmission cearance between conveyor
7.Different sizes available upon request
8.SMEMA compatible
Technical parameters

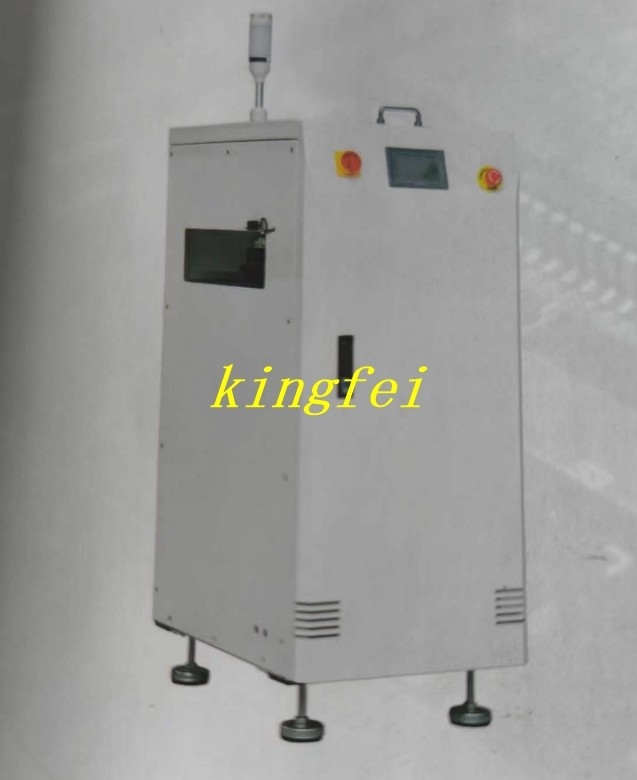

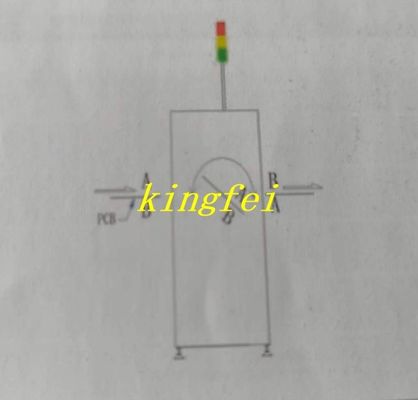

| Description | This unit is used to invert PCBs(180 0)for "double-sided" process |
| Cycle time | Approx.5 seconds |
| Belt type | oblate belt |
| Power supply | AC 110 volts or 220 volts; single phase |
| Power | Max 150VA |
| Air prssure and Air consumption | 4-6bar,1.Itr/min max |
| Transport height | 900±20MM (or customer specified ) |
| Transport direction | From left to righ or right to left |
Specification
| Model | Dimension(L*W*H MM) | PCB size(MM) | Weight(KG) |
| BI-330W-N | 500*786*1200 | 50*50-445*330 | 120KG |
| BI-400W-M | 600*856*1200 | 50*50-530*400 | 160KG |
|
|
