| Place of Origin: | China |
| Brand Name: | KINGFEI |
| Model Number: | GC-330W-N |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Delivery Time: | within 3days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 10pcs |

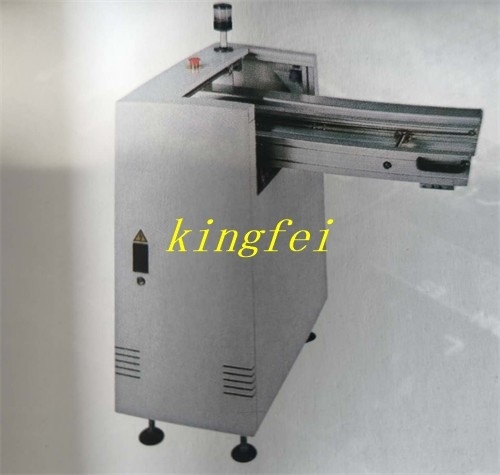

| Brand: | KINGFEI | Part Name: | Hand Door Conveyor |
|---|---|---|---|
| Part Number: | GC-330W-N | Dimension(L*W*H MM): | 1000(L)*730(W)*1050(H) |
| PCB Size(MM): | 50*50-445*330 | Weight(KG): | 180KG |
feature
1.Clyinder support the ascending moving
2.Pneumatic lock installed to enhance safety
3.650 mm passage way or specify
4.Parallel and smooth width adjustment (leadscrew)
5.Safety sensor installed to enhance safety
6.SMEMA compatible
Technical parameters
| description | This equipment is necessary for channe production line |
| Belt type | oblate belt |
| Conveying speed | 0.5-20M/min orspecify |
| Power supply | AC 110 volts or 220 volts; single phase |
| Power | Max100VA |
| Air prssure and Airconsumption | 4-6bar,48ltr/minmax |
| Transport height | 900±20MM(or customer specified ) |
| Transport direction | From left to righ or right to left |
Specification
| Model | Dimension(L*W*H MM) | PCB size(MM) | Weight(KG) |
| GC-330W-N | 1000*730*1050 | 50*50-445*330 | 180KG |
| GC-460W-N | 1000*860*1050 | 50*50-530*460 | 200KG |
