| MOQ: | 1pcs |
| Delivery Period: | within 3days |
| Payment Method: | T/T, Western Union, MoneyGram |
| Supply Capacity: | 10pcs |
feature
1.Speed adjust torque of easy to operate
2.Structure stability
3.Select rectangular welding frame or aluminum profile frame optional
4.Parallel and smooth width adjustment (leadscrew)
5.Convey speed and height adjustment
6.Minimize transmission clearance between conveyor
7.Different sizes available upon request
Technical parameters

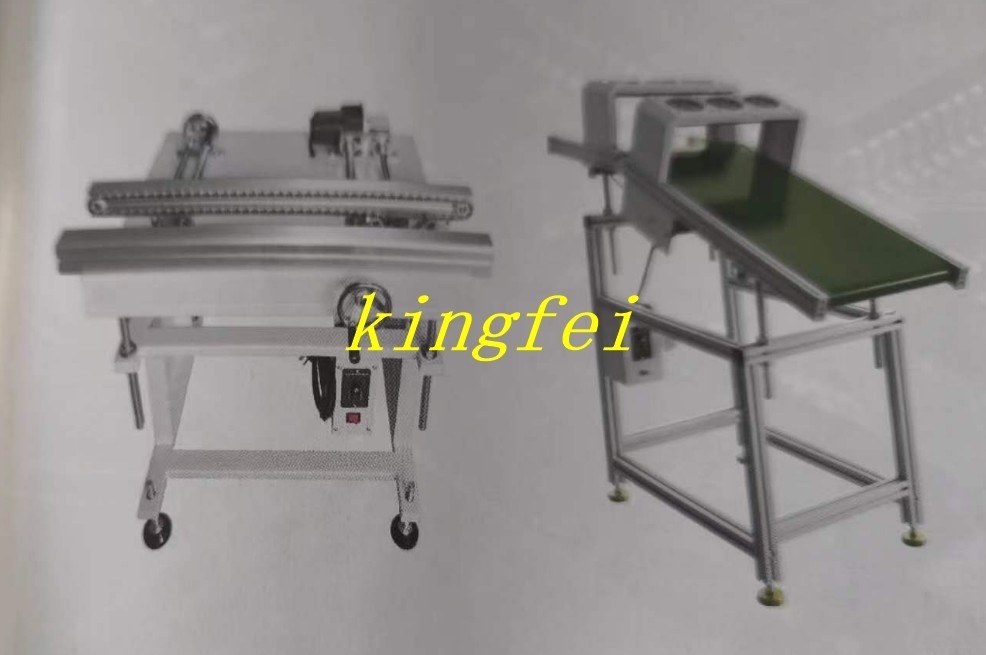

| Description | This unit is used to the transmission of the PCBs of Wave soldering inlet |
| Convey type | 35B Nylon chain or specify |
| Convey speed | 0.5-20r/min or specify |
| Power supply | AC 110 volts or 220 volts; single phase |
| Power | Max 100 VA |
| Transport direction | From left to righ or right to left |
| Description | This unit is used to the transmission of the PCBs of Wave soldering exit |
| Convey type | Green anti-static PVC belt or specify |
| Convey speed | 0.5-20m/min or specify |
| Power supply | AC 110 volts or 220 volts; single phase |
| Power | Max100VA |
| Transport direction | From left to righ or right to left |
Specification
| Model | Dimension(L*W*H MM) | PCB size(MM) | Weight(KG) |
| BF-L-BN | 800*600*1100 | 50*50-445*330 | 35KG |
| BF-XL-BN | 800*730*1100 | 50*50-530*460 | 45KG |
| UB-400W-TN | 1200*480*1250 | 50*50-445*330 | 35KG |
| UB-500W-TN | 1200*730*1100 | 50*50-530*460 | 45KG |
|
|
