| MOQ: | 1pcs |
| Delivery Period: | within 3days |
| Payment Method: | T/T, Western Union, MoneyGram |
| Supply Capacity: | 10pcs |

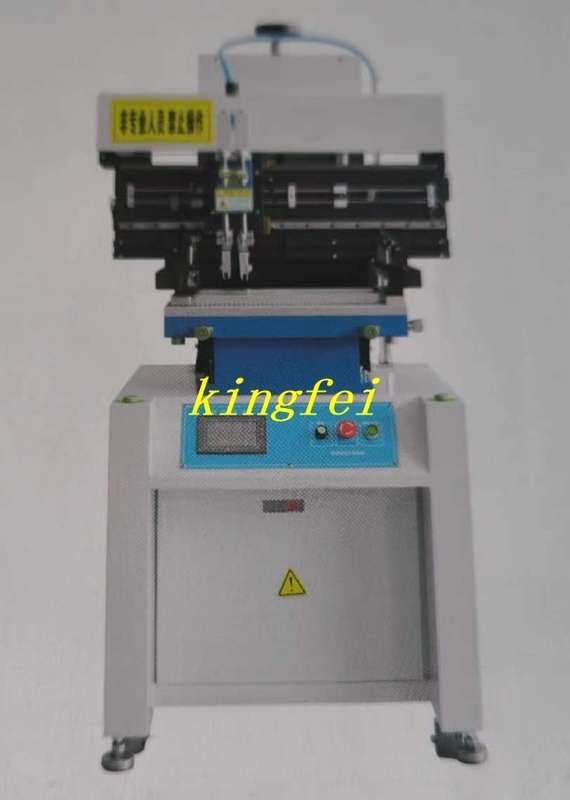

feature
1.High precise sillde rail,printing precise is uo to 0.2mm iC
2.PLC+touch screen+frequency inverter controller
3.Magnetic thimb +honeycomb board platform,more suitable for double sides PCB
4.Scrape angle pressure ,trave length are adjustable
5.X/Y/Z axis can fine turning,high precise!
Specification
| Model | OB-P618 | OB-P618A | OB-P618E |
| Dimensions | 850*670*1550mm | 1005*670*1550mm | 1650*670*1550mm |
| Platform size | 320*400mm | 320*600mm | 320*1300mm |
| PCB size | 300*400mm | 300*550mm | 300*1250mm |
| Stencil size | 550*680 | 550*835mm | 550*1480mm |
| Printing speed | 0-8000mm/Min | 0-8000mm/Min | 0-8000mm/Min |
| PCB thickness | 0-100mm | 0-100mm | 0-100mm |
| Power suppiy | 1P AC220V 50/60HZ | 1P AC220V 50/60HZ | 1P AC220V 50/60HZ |
| Platform height | 880mm | 880mm | 880mm |
| Repeatability | +/-0.01mm | +/-0.01mm | +/-0.01mm |
| Positioning mode | Outside/Reference hole | Outside/Reference hole | Outside/Reference hole |
| Weight | Approx.270KGS | Approx.290KGS | Approx.380KGS |
|
|
