| MOQ: | 1pcs |
| Delivery Period: | within 3days |
| Payment Method: | T/T, Western Union, MoneyGram |
| Supply Capacity: | 10pcs |
feature
1.User friendly“soft-touch' LED control membrance control panel
2.Enclosed design with built-in torque limiter ensures highest level of safety
3.Top cover can be opened for easy access to hardware during maintance
4.Parallel and smooth width adjustment (leadscrew)
5.Steady and precise scaling (retractable motor)
6.Minimize transmission clearance clearance between conveyor
7.Different sizes available upon request
8.PCB traffic flows can be customised
9.SMEMA compatible
Technical parameters

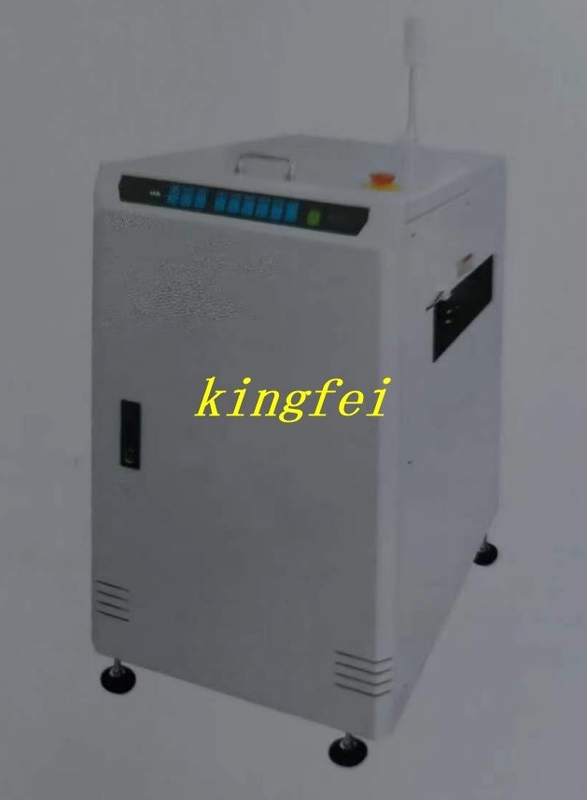

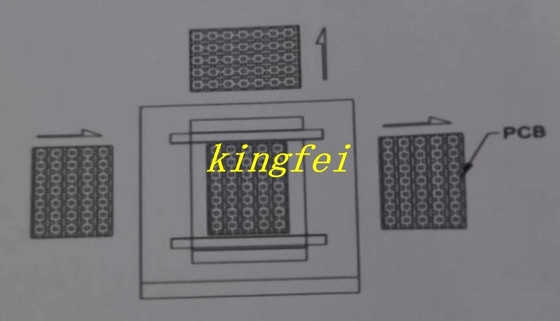

| Description | This uit is used to redirect PCBs flow into diffrent channels in aproduction line(rotate 90 degrees,180 degrees,270 degrees) |
| Cycle time | Approx.15 seconds |
| Belt type | Round belt or oblate belt |
| Power supply | AC 110 volts or 220 volts; single phase |
| Power | Max250VA |
| Transport height | 900+20MM (or customer specified ) |
| Transport direction | From left to righ or right to left |
Specification
| Model | Dimension(L*W*H MM) | PCB size(MM) | Weight(KG) |
| CN-M-N | 500*563*1200 | 50*50-330*250 | 150KG |
| CN-L-N | 580*643*1200 | 50*50-400*330 | 170KG |
|
|
