| Place of Origin: | China |
| Brand Name: | KINGFEI |
| Model Number: | BC-L-TN |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Delivery Time: | within 3days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 10pcs |

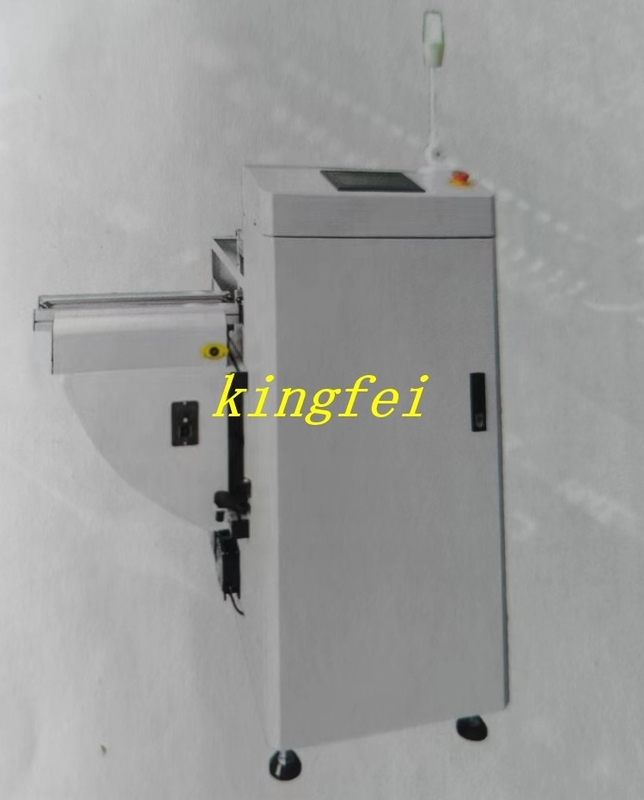

| Brand: | KINGFEI | Part Name: | Multifunctional Vertical Typebuffer |
|---|---|---|---|
| Part Number: | BC-L-TN | Dimension(L*W*H MM): | 500(L)*844(W)*1250(H) |
| PCB Size(MM): | 50*50-445*330 | Weight(KG): | 190KG |
feature
1. User friendly membrane control panel
2.Transmission with durable roller (no need to replace the belt)
3.Three operation modes: FIFOLIFO.Pass-through
4.Parallel and smooth width adjustment(leadscrew)
5. Fast,smooth and accurate retrieval positions
6. Enclosed design ensures highest level of safety
7.Small machine footprint
8.SMEMA compatible
Technical parameters
| description | This unitis used as a buffer between SMT machine |
| Cvcle time | Approx.10 seconds |
| Maximum PCBs magaine | 25 pcs or specify |
| Power supply | AC 110 volts or 220 volts; single phase |
| Power | Max250VA |
| Transport height | 900±20MM (or customer specified) |
| Transport direction | From left to righ or right to left |
Specification
| Model | Dimension(L*W*H MM) | PCB size(MM) | Weight(KG) |
| BC-L-TN | 500*844*1250 | 50*50-445*330 | 190KG |
| BC-LL-TN | 600*974*1250 | 50*50-530*460 | 240KG |
Contact Person: Sandy
Tel: +8617324492760
