| Place of Origin: | China |
| Brand Name: | KINGFEI |
| Model Number: | BM-M-TN |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Delivery Time: | within 3days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 10pcs |

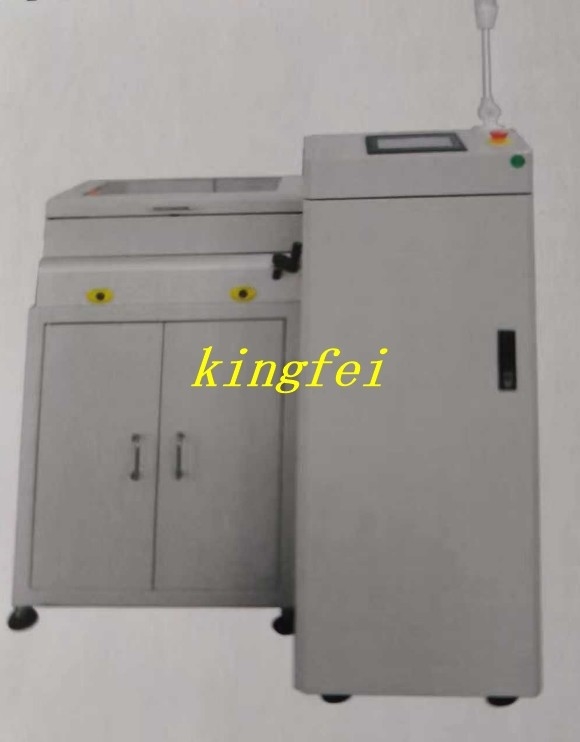

| Brand: | KINGFEI | Part Name: | Magazine Type Buffer |
|---|---|---|---|
| Part Number: | BM-M-TN | Dimension(L*W*H MM): | 1150(L)*1150(W)*1250(H) |
| PCB Size(MM): | 50*50-330*250 | Rack Size（LxWxH，MM）: | 355*320*563 |
| Weight(KG): | 160KG |
feature
1.User friendly 'soft touch' LED membrance control panel or touch screencan be seleced
2.Top & bottom pneumatic clamps to secure magazine rack
3.No PCB breakage guaranty beause of special gas circut design

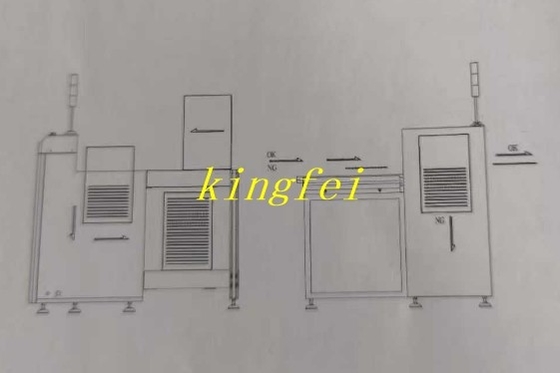

4.Apply to NG board for receive NG board
5.Six operation modes:
6.Fastsmooth and accurate retrieval positions
7.SMEMA compatible
Technical parameters
| description | This device is used for receiving NG board or memory board |
| No.ofmagazine | Upper Conveyor:1 magazine lower conveyor: 2mazagine |
| Indexing pitch | 10.20.30.40mm or specify |
| Power source | AC 110 volts or 220 volts, single phase |
| Power eonsumption | Max250VA |
| Air prssure and Air consumption | 4-6bar,15ltr/minmax |
| Transport height | 900±20MM (or customer specified ) |
| Transport direction | From left to righ or right to left |
Specification
|
Model |
Dimension(L*W*H MM) | PCB size(MM) | Rack size(LxWxH,MM) | Weight(KG) |
| BM-M-TN | 1150*1150*1205 | 50*50-330*250 | 355*320*563 | 160KG |
| BM-L-TN | 1350*1350*1205 | 50*50-445*330 | 460*400*563 | 220KG |
| BM-LL-TN | 1550*1550*1205 | 50*50-530*390 | 535*460*563 | 280KG |
