| MOQ: | 1pcs |
| Delivery Period: | within 3days |
| Payment Method: | T/T, Western Union, MoneyGram |
| Supply Capacity: | 10pcs |
feature
1.Strong,firm and stable design
2. User friendly 'soft touch' LED membrance control panel or touch screen can be seleced
3.Top & bottom pneumatic clamps to secure magazine rack
4.No PCB breakage guaranty beause of special gas circuit design
5.Automatical diagnosing fault code display function
6.Wear-resistant cable and have long service life
7.SMEMA compatible
Technical parameters

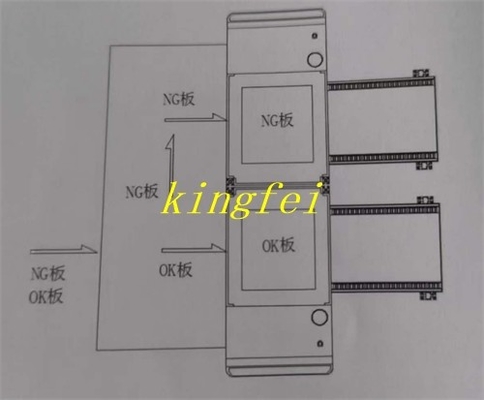

| description | This devce is used to recewve baard SMT circult board production lineoperation, sultble for receive NG board and OK board after soldering |
| No.of mapazine | Upper Conveyor:1magazine lower conveyor;:1 mazagine |
| Indexing pitch | Approx.30seonds or specify |
| Power supply | 10.20.30.40mm or specify |
| Power supply | AC 110 volts or 220 volts; single phase |
| Power | Max 300VA |
| Air prssure and Air consumption | 4-6bar,10ltr/minmax |
| Transport height | 900±20MM (orcustomer specified ) |
| Transport direction | From left to righ or right to left |
Specification
| Model | Dimension(L*W*H MM) | PCB size(MM) | Rack size | Weight(KG) |
| NL-M-N | 1800*1435*1250 | 50*50-330*250 | 355*320*563 | 56KG |
| NL-L-N | 2065*1690*1250 | 50*50-445*330 | 460*400*563 | 70KG |
| NL-LL-N | 2330*1810*1250 | 50*50-530*390 | 535*460*563 | 75KG |
| NL-XL-N | 2330*1950*1250 | 50*50-530*460 | 535*530*563 | 150KG |
|
|
