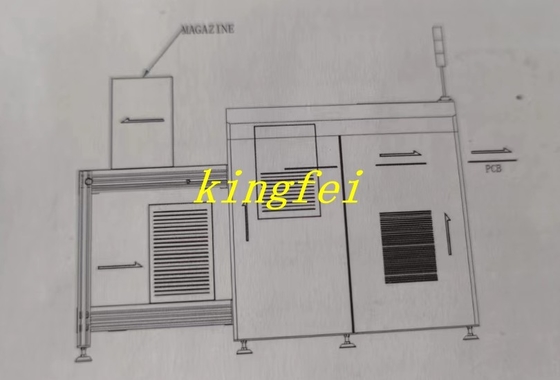

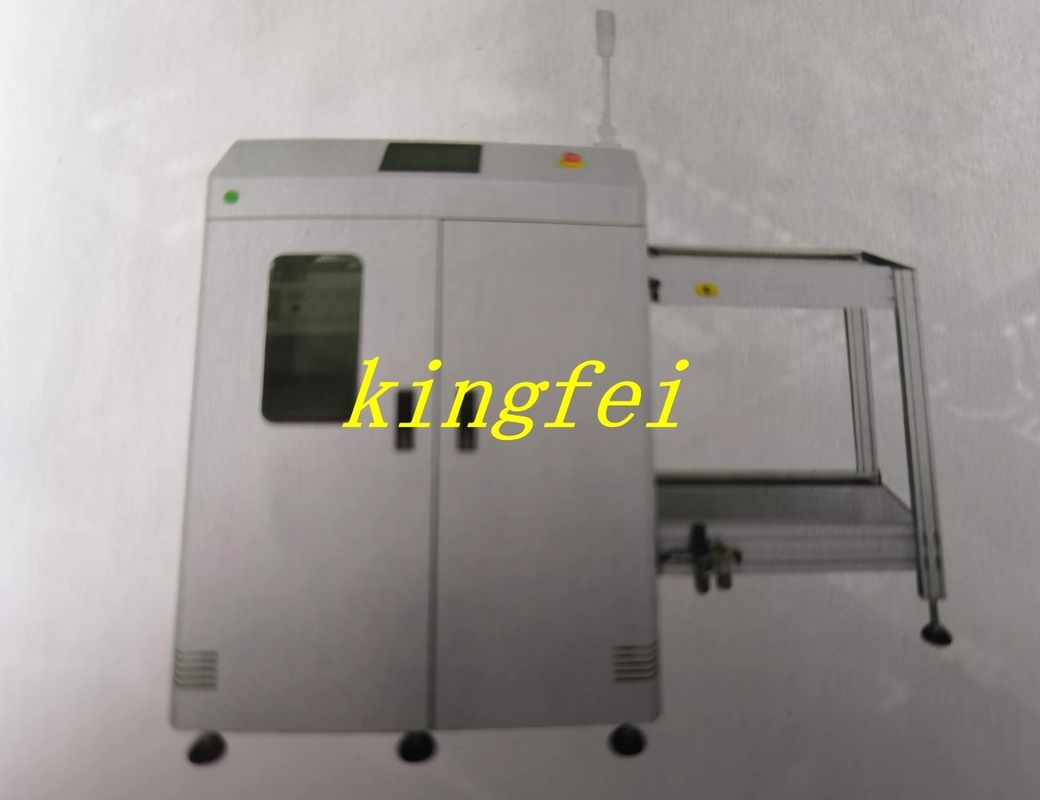

Brand: | KINGFEI | Part Name: | Vacuum Type PCB Loader |
---|---|---|---|
Part Number: | VL-M-TN | Dimension(L*W*H MM): | 1640(L)*865(W)*1205(H) |
PCB Size(MM): | 50*50-330*250 | Rack Size: | 535*460*563 |
Weight(KG): | 200KG |
feature
1.Special aluminum alloy institutions, more clearly understand the state of MAGAZINE operation
2. The stable integral casting lifting platform structure design has improved the stability of the equipment
3.Multifunctional electrical circuit and program design, stable performance, ensure smooth production line.
4.The upper part of the bin has 4 kinds of PITCH selection, which can set the step distance of thefeeding plate PCB.
5.The LED tricolor working indicator is controlled by 7 inch color human-machine interface.
6.A universal positioning mechanism is adopted for the suction nozzle positioning, and theabsorption bits can be adjusted according to the characteristics of the PCB board.
7.The board part of the board on the suction plate has the function of lifting and lifting.
8.The material box is transmitted by the plastic strip of the flat plate.
9.Adiustable push plate speed control.
10.Three point positioning, upper and lower pneumatic clamping, ensure the location of the box is accurate.
11.The push plate protection system ensures that the PCB board will not be damaged and the process loss will be reduced.
12.The standard SMEMA communication interface can be connected with other automation devices
Technical parameters
description | This device is used for automatic loading operation of double-sided and optical boards on the SMT production line |
No.of magazine | Upper Conveyor:1 magazine lower coreyor: magazine |
Indexing pitch | 10.20.30.40mm or specify |
Power supply | 400pcs(0.6mm thick PCB) |
Cycle time | Approx.12seonds or specify |
Power supply | AC 110 volts or 220 volts; single phase |
Power | Max300VA |
Air prssure and Air consumption | 4-6bar,30ltr/min max |
Transportheight | 900±20MM ( or customer specified ) |
Transport direction | From left to righ or right to left |
Specification
Model | Dimension(L*W*H MM) | PCB size(MM) | Rack size | Weight(KG) |
VL-M-TN | 1640*865*1250 | 50*50-330-250 | 335*320*563 | 200KG |
VL-L-TN | 1950*945*1250 | 50*50-445*330 | 460*400*563 | 240KG |
VL-LL-TN | 2270*1110*1250 | 50*50-530*390 | 535*460*563 | 280KG |
VL-XL-TN | 2270*1250*1250 | 50*50-530*460 | 535*530*563 | 320KG |
