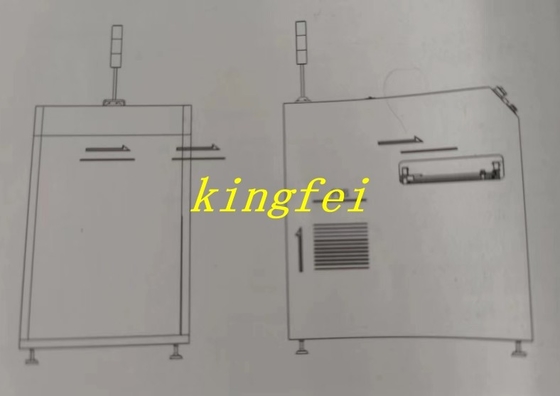

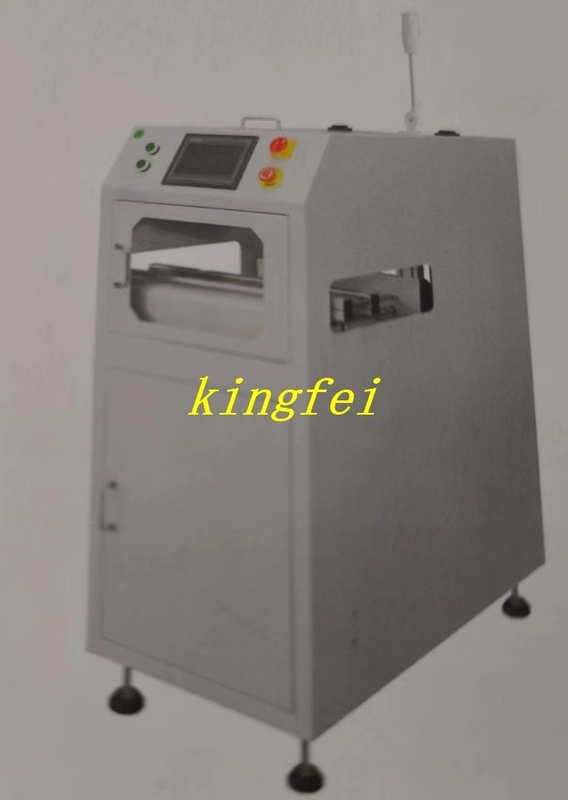

LV-330W-TN SMT Line Machine Translatio Type Suction Machine

Name: LV-330W-TN SMT Line Machine Translatio Type Suction Machine
Brand: Dongguan Kingfei Technology Co.,Limited
SKU: LV-330W-TN
Price: 1,225.00 USD
Availability: InStock

Brand Name:	KINGFEI
Model Number:	LV-330W-TN
MOQ:	1pcs
Delivery Time:	within 3days
Payment Terms:	T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Brand:

KINGFEI

Part Name:

Translatio Type Suction Machine

Part Number:

LV-330W-TN

Dimension(L*W*H MM):

600(L)*1002(W)*1300(H)

PCB Size(MM):

50*50-445*300

Weight(KG):

130KG

Supply Ability:

10pcs

Product Description

feature
1.convenient operation of ouch screen control panel
2.The vacwum loader structure is fully enclosed toensure the safe level of operation
3.Adjust the position of the suction nozzle to ensure thecircuit boards is clamped
4.Parallel and smooth width adjustment(leadscrew)
5.Smooth and precise translation (stepper motor)
6.Minimize clearance between conveyor
7.The machine size can be specify
8.SMEMA compatible

Technical parameters

description	This unit is used for automatic loading operation intotransceiver board
Maximum PCBs capacity	400pcs(0.6mm thick PCB)
Cycle time	Approx.12seonds or specify
Power source	AC 110 volts or 220 volts;single phase
Power consumption	150Vmax
Air prssure and Air consumption	4-6bar,30ltr/min max
Transport height	00±20MM (or customer specified )
Transport direction	From left to righ or right to left

Specification

Model	Dimension(LWH MM)	PCB size(MM)	Weight(KG)
LV-330W-TN	60010021300	5050-445330	130KG
LV-460W-TN	80012701300	5050-530460	150KG
