| MOQ: | 1pcs |
| Delivery Period: | within 3days |
| Payment Method: | T/T, Western Union, MoneyGram |
| Supply Capacity: | 10pcs |
feature
1.Strong,firm and stable design
2.User friendly 'soft touch' LED membrance control panelor touch screen can be selected
3.Top & bottom pneumatic clamps to secure magazine rack
4.No PCB breakage guaranty beause of special gas circuit design
5.Automatical diagnosing fault code display function
6.Durable cable and have long service life
7.SMEMA compatible
Technical parameters

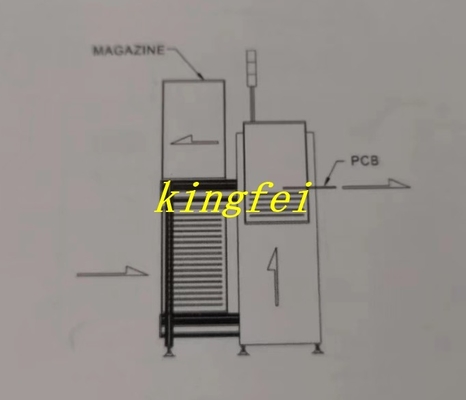

| description | This unit is used for loading and unloading of PCBs |
| Noof magazine | Upper Conveyor:1 magazine lower conveyor:2 mazgazine |
| Time feed PCB | seconds 6Approx.or specify |
| Mazacine | Approx.30 seconds or specify |
| Indexing pitch | 10.20.30.40mmorspecify |
| Power supply | AC 110 volts or 220 volts; single phase |
| Power | Max300VA |
| Air prssure and Air consumption | 10ltr/min max |
| Transport height | 900±20MM (or customer specified ) |
| Transport direction | From left to righ or right to left |
Specification
| Machinename | Model | Dimension(L*W*H MM) | PCB size(MM) | Rack size(L*W*H,MM) | Weight(KG) |

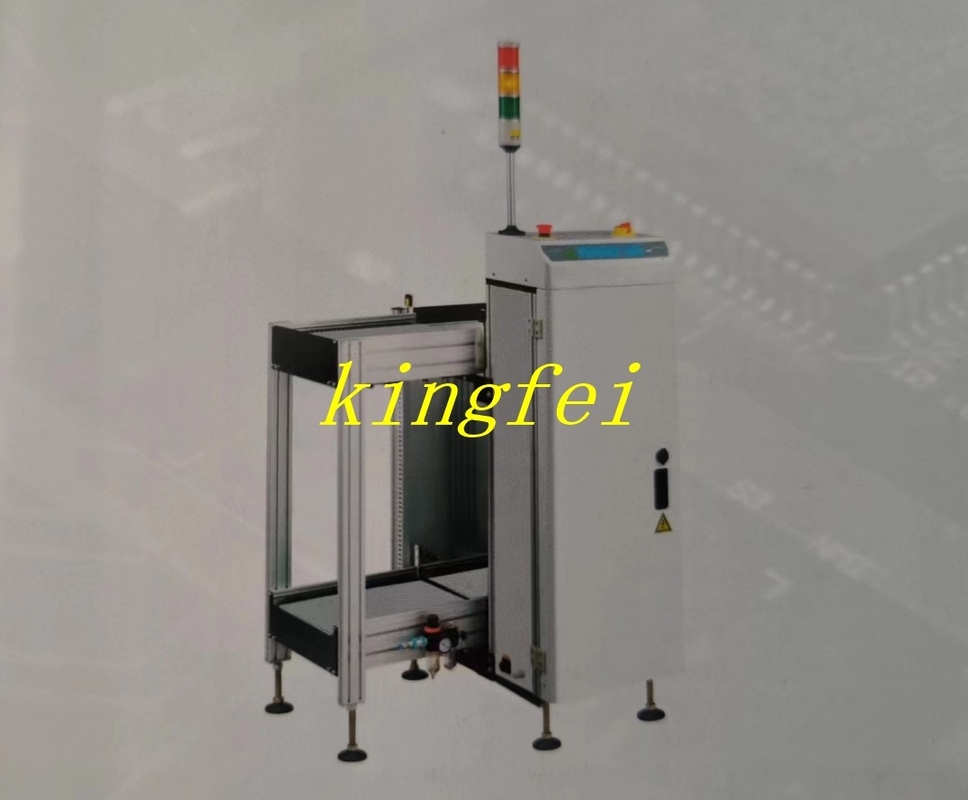

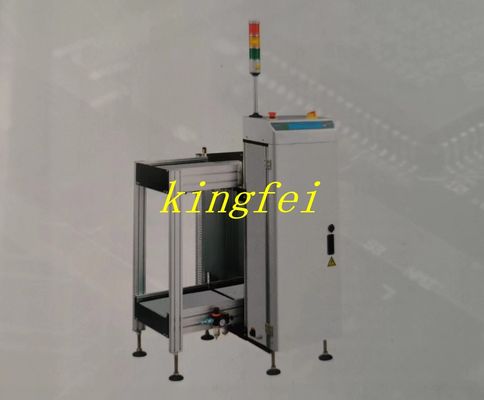

| Compact PCB Ioader | LT-M-BN | 850*765*1250 | 50*50-330*250 | 355*320*563 | 120KG |
| Compact PCB Ioader | LT-L-BN | 1250*845*1250 | 50*50-445*330 | 460*400*563 | 180KG |
|
|
