| MOQ: | 1pcs |
| Delivery Period: | within 3days |
| Payment Method: | T/T, Western Union, MoneyGram |
| Supply Capacity: | 10pcs |
feature
1.modular design
2.Weighted design improves stability
3.Inspection mode and automatic mode
4.Inducing multi-zone position accuracy
5.Ergonomic design,make arms rest
6.Custom machine length according to customer's requirement
7.Order the number of multi-zone according to customer's requirement
8.Variable speed control
9.Compatible SMEMA interface
Technical parameters

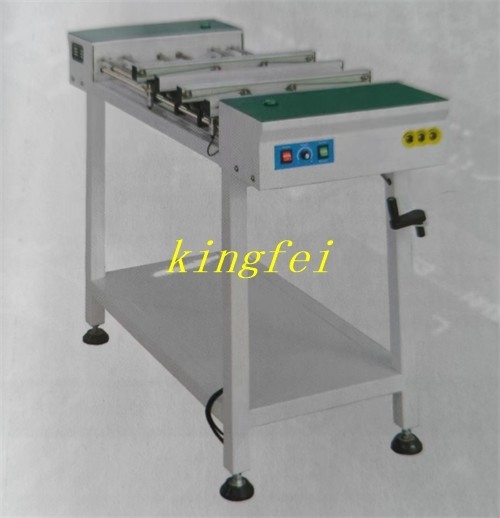

| description | This device is equivalent to SMD machine or operator testing sfafion otPCB assembly equipment. |
| Belt type | Round belt or oblate belt |
| Conveying speed | 0.5-20M/min or customer specified |
| Power supply | AC 110 volts or 220 volts; single phase |
| Power | Max 100VA |
| Transport height | 900+20MM (or custimzie) |

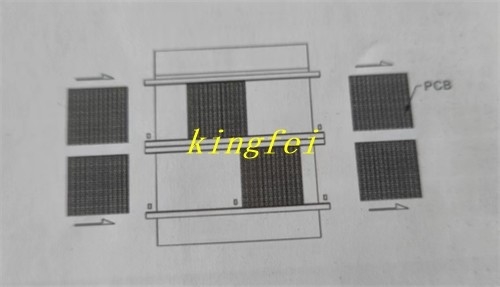

| Transport direction | From left to righ or right to left |
Specification
| Model | Dimension(L*W*H MM) | PCB size(MM) | Weight(KG) |
| DC-050M-N | 500*1046*900 | 50*50-330*250 | 80 |
| BC-100M-N | 1000*1046*900 | 50*50-330*250 | 95 |
|
|
