| MOQ: | 1pcs |
| Delivery Period: | within 3days |
| Payment Method: | T/T, Western Union, MoneyGram |
| Supply Capacity: | 10pcs |

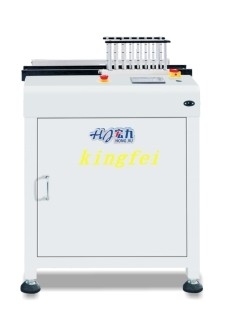

Feature
1.Use in SMT production line, setting up behind AOl and SPlAccording to the NG and Ok signals given by the detectionequipment, the NG PCB will be pushed up and the OK PCB issent to the next equipment;
2.PLC control, linear mode or NG mode can be switched;
3.Use cylinder to control PCB pushed up, can storage 5-20PCB;
4.SMEAM Cable
Technical parameters
| Ltem | Specifications |
| Working height (mm) | 920±30(std) |
| Power supply and power | AC220V±10v,50/60HZ |
| Conveyor type | Flat strip |
| Transmission speed | 0.5-20 meters/minute |
| Board Thickness | Minimum 0.6mm thickness |
| Number of boards stored | 5 pieces |
| Modei | RC-100M-N | RC-100X-N |
| Machine dimensions | 1000(L)*680(W)*900(H) | 1000(L)*790(W)*900(H) |
| Circuit board size (mm) | 80*80~460*350 | 80*80~460*460 |
|
|
| MOQ: | 1pcs |
| Delivery Period: | within 3days |
| Payment Method: | T/T, Western Union, MoneyGram |
| Supply Capacity: | 10pcs |

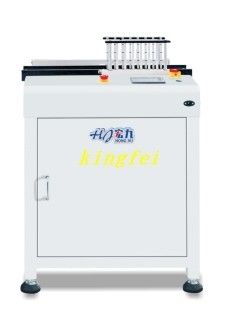

Feature
