| MOQ: | 1pcs |
| Delivery Period: | within 3days |
| Payment Method: | T/T, Western Union, MoneyGram |
| Supply Capacity: | 10pcs |

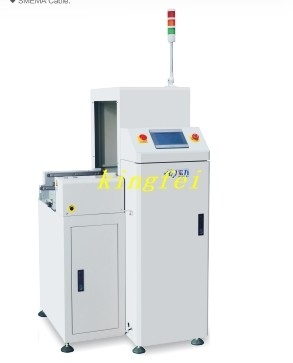

Feature
1.Use in SMT production line ,setting up behind AOl and SPl,NG,OK PCB can be temporary storage and for repairing,storage12 PCBs;
2.PLC Control system;
3.According to the signal from the upper equipment, the NG board is automatically stored;
4.With memory function, control PCB board in and out order;
5.With first in, first out, first in last out, straight through function;
6.Can remotely judge true and false;
7.Can be operated remotely, turn bad PCB in wrong judged intogood, conveyor next equipment;
8.Can be operated remotely convey the NG PCB to the BGA;
9.SMEMA Cable.
Technical parameters
| Ltem | Specifications |
| PCB cycle time | 6-10S |
| Compressed air supply pressure | 5kgf/cm² |
| Compressed air flow rate | Maximum 10 liters/minute |
| Power supply and power | AC220V±10v50/60HZ |
| Working height (mm) | 920±30(std) |
| Board Thickness | Minimum 0.6mm thickness |
| Belt type | 4mm flat strip |
| Modei | EN-M-TN | EN-L-TN | EN-LL-TN | EN-XL-TN |
| Machine dimensions | 880(L)*920(W)*1500(H) | 1150(L)*1045(W)*1500(H) | 1325(L)*1100(W)*1500(H) | 1325(L)*1150(W)*1500(H) |
| Circuit board size (mm) | 80*80-350*250 | 80*80~445*330 | 80*80-535*390 | 80*80-535*460 |
|
|
