| MOQ: | 1pcs |
| Delivery Period: | within 3days |
| Payment Method: | T/T, Western Union, MoneyGram |
| Supply Capacity: | 10pcs |

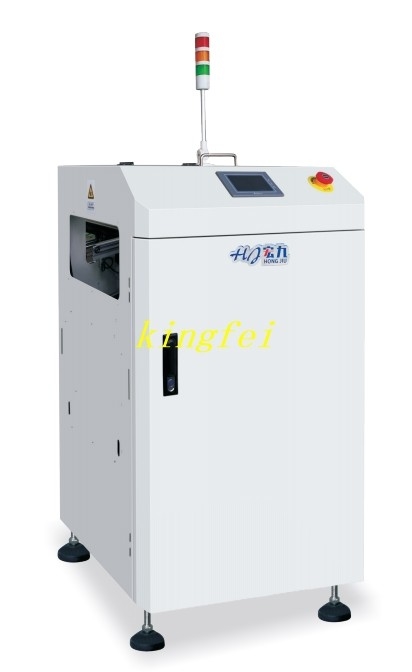

Feature
1.Use in SMT production line , change PCB conveying directionof90°
2.PLC control system , Touch screen, better for performanceand operation;
3.Frame structure with sheet metal welding, aluminumconstruction, surface paint treatment, Leave a visual window;
4.The rotary and telescopic structure adopts steppingmotor,with acceleration and deceleration setting, accuratepositioning, reduce jitter;
5.The conveying structure adopts stepping motor conveyingmode, with acceleration and deceleration function, theconveying is stable and not easy to punch the PCB;
6.Direction of rotation is optional: straight and 90 180 rotation can choose;
7.SMEMA Cable;
8.With before and after expansion function, ensure conveymore effective.
Technical parameters
| Ltem | Specifications |
| Working height (mm) | 920±30(std) |
| Power supply and power | AC220V±10v,50/60HZ |
| Transmission speed | 1-12 meters/minute |
| Cycle time | 10 sec |
| Conveyor type | 4mmFlat strip |
| Board Thickness | Minimum 0.6mm thickness |

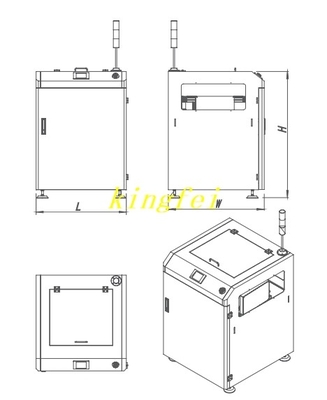

| Modei | CN-M-TM | CN-L-TM | CN-LL-TM | CN-XL-TM |
| Machine dimensions | 500(L)*560(W)*1170(H) | 650(L)*710(W)*1170(H) | 800(L)*890(W)*1170(H) | 950(L)*1080(W)*1170(H) |
| Circuit board size (mm) | 80*80-330*250 | 80*80~445*330 | 80*80-535*390 | 80*80~535*460 |
|
|
