| MOQ: | 1pcs |
| Delivery Period: | within 3days |
| Payment Method: | T/T, Western Union, MoneyGram |
| Supply Capacity: | 10pcs |

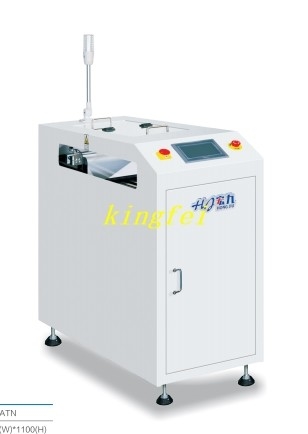

Feature
1.Mainly used:
a:Use in SMT production line for Single and double railequipment connection, can separate two lines in one or
on the contrary;d:Use in U-type or two in one production line, Transferdirection of PCB board is changed by load shifting;
2.We can customize double track single head, single trackdouble head,elongated load-shifting machine accordingto actual needs;
3.PLC Control system, Touch screen, SMEMA cable;
4.Speed can be set at will by motor control.
Technical parameters
| Ltem | Specifications |
| cycle time | 15.0 sec |
| Working height (mm) | 920±30(std) |
| Power supply and power | AC220V±10v,50/60HZ |
| Compressed air supply pressure | 4-6bar |
| Board Thickness | Minimum 0.4mm thickness |
| Belt type | 4mm flat strip |
| Fixed edge of track | 4mm flat fixed rail with a distance of 686mm, one in two out or two in one out |
| Model | PT-130M-FATN | PT-350M-FATN |

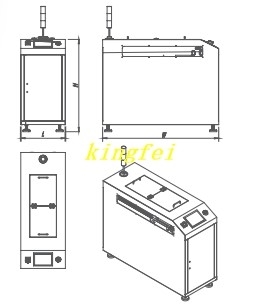

| Machine dimensions | 500(L)*1300(W)*1100(H) | 600(L)*3500(W)*1100(H) |
| Circuit board size (mm) | 80*80~445*250 | 80*80~535*460 |
The width of the machine may vary depending on the situation, subject to actual conditions
|
|
