| MOQ: | 1pcs |
| Delivery Period: | within 3days |
| Payment Method: | T/T, Western Union, MoneyGram |
| Supply Capacity: | 10pcs |

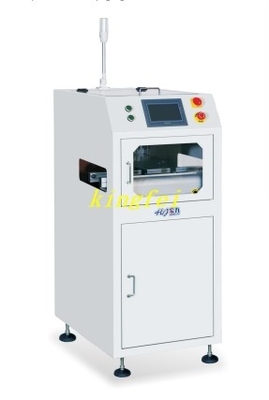

Feature
1.Use in SMT production line, the stacked bare board isautomatically fed into the back-end equipment by vacuumadsorption. It has the function of automatic upper board andcan be used with the Loader or as the bare board retractor;
2.PLC control system + touch screen;
3.The upper PCB adopts vacuum adsorption, load shifting anddropping,Stackable pcb 200-300 pieces (varies according toPCB thickness);
4.Pitches can be adjusted varies according to PCB thickness;
5.SMEMA Cable;
6.Use special transmission track aluminum groove design,prevent PCB snap-gauge.
| Ltem | Specifications |
| Board loading time | 15.0 sec |
| Working height (mm) | 920±30(std) |
| Power supply and power | AC220V±10v,50/60HZ |
| Air supply pressure | 5kgf/cm² |
| Transmission speed | 0.5-20 meters/minute |
| Compressed air flow rate | Maximum 10 liters/minute |
| Board Thickness | Minimum 0.4mm thickness |
| Maximum capacity of circuit board | 200 pieces (0.6mm thick circuit board) |
Note: Without material box
| Model | LV-350W-TN | LV-460W-TN |

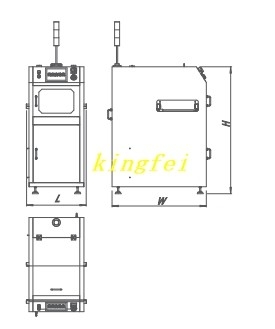

| Machine dimensions | 600(L)*1130(W)*1270(H) | 600(L)*1250(W)*1270(H) |
| Circuit board size (mm) | 80*80~445*350 | 80*80-535*460 |
|
|
