Name: NM-EJW2A Calibration jig For CM602 / CM402 / NPM feeders , JIG N610005354AA Feeder Check Master Jig
Brand: Panasonic
SKU: NM-EJW2A
Rating: 4.7 (127 reviews)

Home Products Surface Mount Placement Machine

NM-EJW2A Calibration jig For CM602 / CM402 / NPM feeders , JIG N610005354AA Feeder Check Master Jig

Product Details:

Place of Origin:	Japan
Brand Name:	Panasonic
Model Number:	NM-EJW2A

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Packaging Details:	wooden case
Delivery Time:	within 3~5days
Payment Terms:	T/T, Western Union, MoneyGram

Contact Now

Detailed Product Description

Model:	NM-EJW2A	Brand:	Panasonic
Part Name:	Calibration Jig	Machine:	CM602 CM402
Usage:	Calibrate Feeder	Part Number:	N610005354AA
Highlight:	SMT Assembly Machine , surface mount equipment

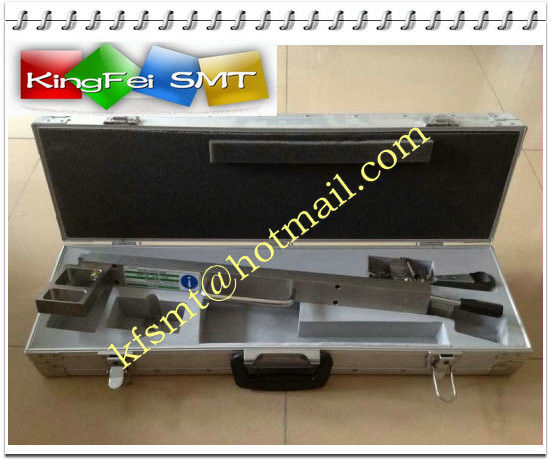

NM-EJW2A Calibration jig For CM602 / CM402 / NPM feeders, JIG N610005354AA feeder check master jig

Specifications:

NM-EJW2A	Application	CM402,CM602,NPM Feeder
	Model	NM-EJW2A
	Size	4005001100mm
	Power Supply	100-240V`50/60Hz
	Scope of the applicable	8mm-32mm
	Adjusted accuracy	≤0.02mm
	Corrected accuracy	≤0.05mm
	Jig tape set	1set(8mm,12mm,16mm,24mm,32mm,master jig)

NM-EJW2A Calibration jig For CM602 / CM402 / NPM feeders , JIG N610005354AA Feeder Check Master Jig 0

Description:

1. Adopt hardened metal, used for CM402/602/212/NPM feeders, NM-EJW2A adjust jig, it is for CM602,CM402,NPM feeders.

2. The intelligent feeder check unit allows the customer to perform maintenance on the intelligent feeders(tape feeders 8mm to 32mm wide)

2-1. A periodic check can be made after a fixed number of operations.

2.2. The customer can adjust the component-feeding position after replacing the parts of a malfunctioning feeder(limited to components).

2-3. The feeder maintenance history will be managed on a PC.

3. Features:

The camera-captured image will be displayed on the PC screen, not on the dedicated screen any longer, therefore, the reference position of feed direction can be visually adjusted through the use of PC.

Also the target reference frame to be used for adjustment can be selected from a pull-down list on the PC screen, moreover, the dedicated cart with casters provides easy carrying.

Applications:

Business Organizations	Factory, electronic factory
Equipment machine	CM402,CM602,NPM FEEDERS
Scope	Feeder Offset,gear detection and restore,Software upgrade
