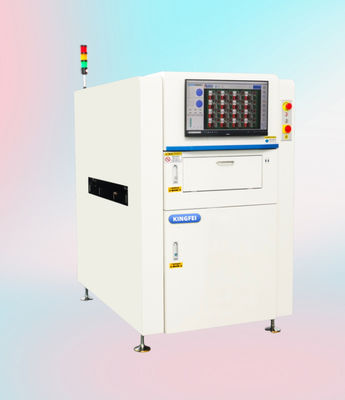

Online AOI 3D PCBA Automatic Optical Inspection High Speed High Resolution Image

Online AOI 3D PCBA Automatic Optical Inspection High Speed High Resolution Image

Description:

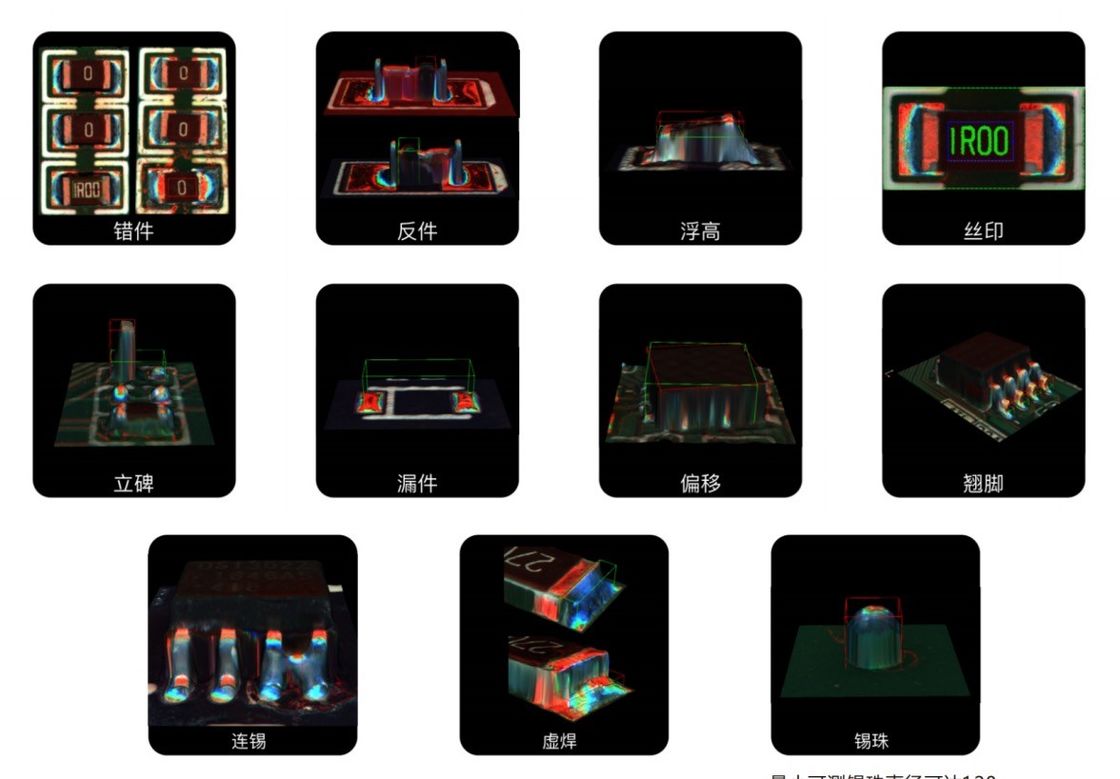

Through the 3D structural optical imaging system and algorithm with high reduction degree,

the height is accurately measured, effectively providing a judgment basis, and helping to more accurately

judge defects and defects repeated measurement accuracy is up to 3um.

Core Advantage:

1, High Speed, high resolution image processing technology, efficient 2D inspection measurement performance and the 3D imaging speed. This was based on projected 3D imaging in the 4/8 orientation to minimize the shading problem.

2, he measurement height range is configurable both 2D and 3D are detectable.

3, Deep learning algorithm, training the intelligent model based on big data. One key to find the trained devices, can quicly batch broadcast parameters.

Realize fast programming and operation, and the plate-making process is simple and esy to learn.

4, Automatic identification of bar code, quick query of production statistics report, view the trace data remotely.
