| MOQ: | 1pcs |
| Standard Packaging: | wooden case |
| Delivery Period: | 1~3days |
| Payment Method: | T/T, Western Union, MoneyGram |
| Supply Capacity: | 100pcs |
Using multiple algorithms synthetically such WIDM, Color Image contrast technology, color extracting technology, similarity, two-value handing technology, OCR/OCV and so on.

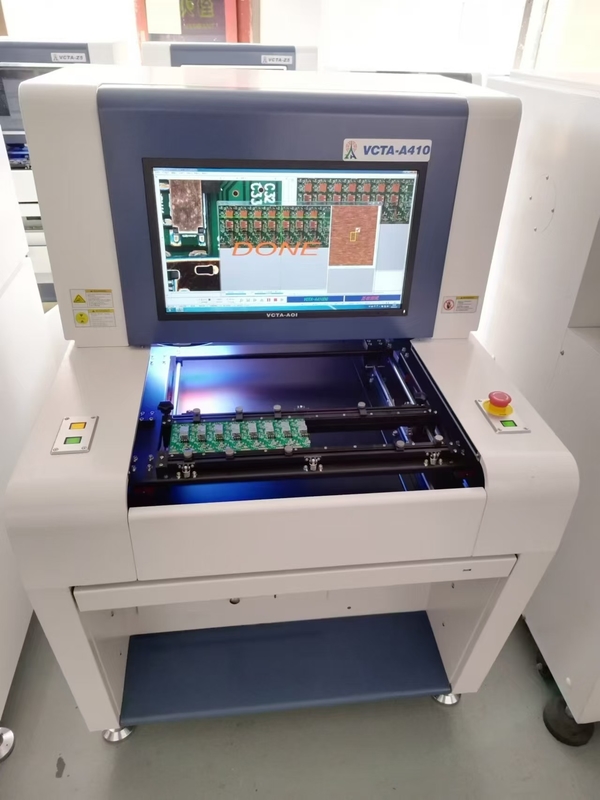

Economical and practical AOI.
High precision detection platform design.
Fast programming debugging integration.
Automatic recognize the Top and Bottom side.
Professional SPC system.
Parameter:
1, Color CCD Camera, 12/15/20um
2, Lamp: Ring RGB LED flash Lamp source
3, Inspection item:
paste printing defects( misaligned, overflow, insufficient, pasting open, stain)
Component defects ( missing, misaligned, skewed, tombstone, billboard, overturned, recersed polarity, wrong, damaged
Solder defects( overflow, insufficient, short solder, stain)
Anti static measures: Snti static electric outlet, anti static wreath
3, PCB size: 25x25mm ~ 330 x480mm
4, PCB thickness: 0.5~2.5mm
5, machine size: 87x104x130CM
6, Weight: 360Kg
7, Power supply: AC220V
