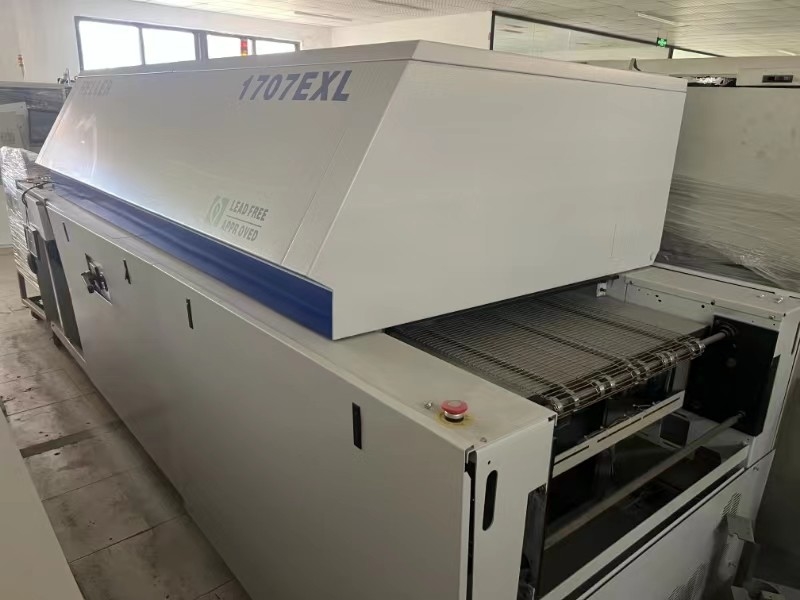

Name: Heller 1707EXL Reflow Oven 7 Heating Zone Lead Free
Brand: Dongguan Kingfei Technology Co.,Limited
SKU: 1707EXL
Price: 1,225.00 USD
Availability: InStock

MOQ:	1 unit
Standard Packaging:	wooden case
Delivery Period:	3~5days
Payment Method:	T/T, Western Union, MoneyGram
Supply Capacity:	3pcs

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

Heller

Model Number

1707EXL

Spec:

7 Heating Zones

Model:

1707EXL

Name:

Heller Reflow Oven

Max PCB:

22'' Wide

Direaction:

Left To Right

Size:

134x54x63CM

Highlight:

Lead Free Reflow Oven

7 Heating Zone Reflow Oven

Heller 1707EXL Reflow Oven

Product Description

Heller 1707EXL Reflow Oven 7 Heating Zone Lead Free

Heller Reflow Oven Specifications

Model 1707EXL(Air) 1707EXL (Nitrogen)

Electric Supply

Power Input (3 Phase) Standard

208/240 volts 208/240 volts

Breaker Size 100 amps @ 480v 100 amps @ 480v

kW 10-12 Continuous* 10-12 Continuous*

Typical Run Current 20 - 25 amps @ 480v 20 - 25 amps @ 480v

Optional Power Inputs Available 380/400/440/415/480 VAC 380/400/440/415/480 VAC

Frequency 50/60 Hz 50/60 Hz

Sequential Zone Turn On S S

Single Phase Operation Not Available Not Available

Dimensions

Overall Length 134" (340 cm) 134" (340 cm)

Overall Width 54" (137 cm) 54" (137 cm)

Overall Height 63" (160 cm) 63" (160 cm)

Typical Net Weight 3000 lbs. (1360 kg) 3000 lbs. (1360 kg)

Typical Shipping Weight (Domestic) 3500 lbs. (1587 kg) 3500 lbs. (1587 kg)

Typical Shipping Weight (Export) 4000 lbs. (1814 kg) 4000 lbs. (1814 kg)

Computer Control

AMD or Intel Based Computer S S

Recipe Storage > 500 > 500

Flat Screen Monitor S S

Windows Operating System

Windows XP® Windows XP®

Monitor mount S S

Auto Start Software S S

Data Logging S S

Password Protection S S

LAN Networking O O

Inert Atmosphere

Minimum PPM Oxygen - 10-25 PPM

Nitrogen Cooling - S

Waterless Cooling w/ Flux Separation

System

- O

Nitrogen On/Off Valve - O

Oxygen Monitoring System - O

Nitrogen Standby System - O

Sample Port in Reflow - S

Typical Nitrogen Consumption* - 700 - 900 SCFH **

Additional Features

KIC / ECD Profiling Software S S

Signal Light Tower S S

Powered Hood Lift S S

Five (5)Thermocouple Profiling S S

30” Heater Modules O O

Redundant Alarm Sensors O O

Independent Alarm Scanner O O

KIC Profiler / ECD Profiler O O

Center Board Support O O

Board Drop Sensor O O

Board Counter O O

Bar Code Reader O O

Custom Paint & Decal O O

Battery Backup for Conveyor and PC O O

GEM/SECS Interfacing O O

Custom Engineering and Software Available Available

* Varies depending on Options included with the oven Specifications Continue on
