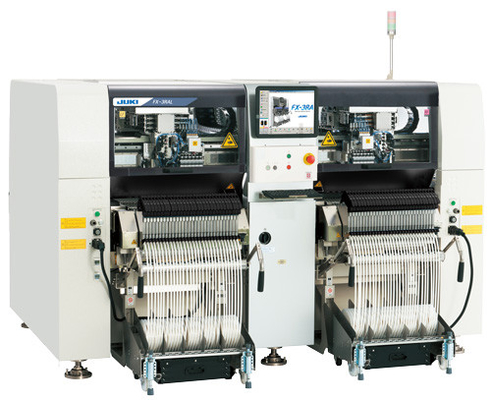

JUKI FX-3RA High-Speed Modular Mounter 0.05mm Laser Recognition

Product Details:

Place of Origin:	Japan
Brand Name:	JUKI
Model Number:	FX-3RA

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Packaging Details:	wooden case
Delivery Time:	3~5days
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	3pcs

Contact Now

Detailed Product Description

Speed:	90000	Component Range:	0402mm (01005 Inch) ~ 33.5x33.5mm
Laser Recognition:	0.05mm	Fly Centering:	Integrated Laser
Holds Up:	240 Components	Frame:	2 Stations, 4 Gantries, 4 Placement Heads, 24 Nozzles
Highlight:	High Speed Modular Mounter , FX-3RA Modular Mounter , JUKI Modular Mounter

High speed, high reliability modular mounter
Improve productivity, reduce rework
Designed to work with KE Series machines to form a high speed, flexible production line
Features:
Chip 90,000CPH (0.040Sec. / chip / Optimum)
66,000CPH (IPC9850)
0402mm(01005 inch) ~ 33.5mm×33.5mm
Laser recognition : ±0.05mm(±3σ)
On-the-fly centering using integrated laser
2 stations, 4 gantries, 4 placement heads, 24 nozzles
Linear servo motor XY drive with full closed-loop control
Holds up to 240 components
Electrical or mechanical feeder trolley

Item/Model		High-Speed Modular Mounter FX-3RAL	High-Speed Modular Mounter FX-3RAXL
Board size	L size(410x360mm)	yes	no
	L-Wide size(510x360mm)*1	yes	no
	XL size(610×560mm)	no	yes
	Applicability to long PWB*1	800×360mm	800×560mm
Component height	6mm	yes
Component size	Laser recognition	0402(01005) ~ 33.5mm×33.5mm
Placement speed (chip)	Optimum	0.040Sec. / chip(90,000CPH)*2
Placement speed (chip)	IPC9850	66,000CPH*2
Placement accuracy	Laser recognition	±0.05mm(±3σ)
Feeder inputs		Max.240 in case of 8mm tape (on a Electric double tape feeder)
