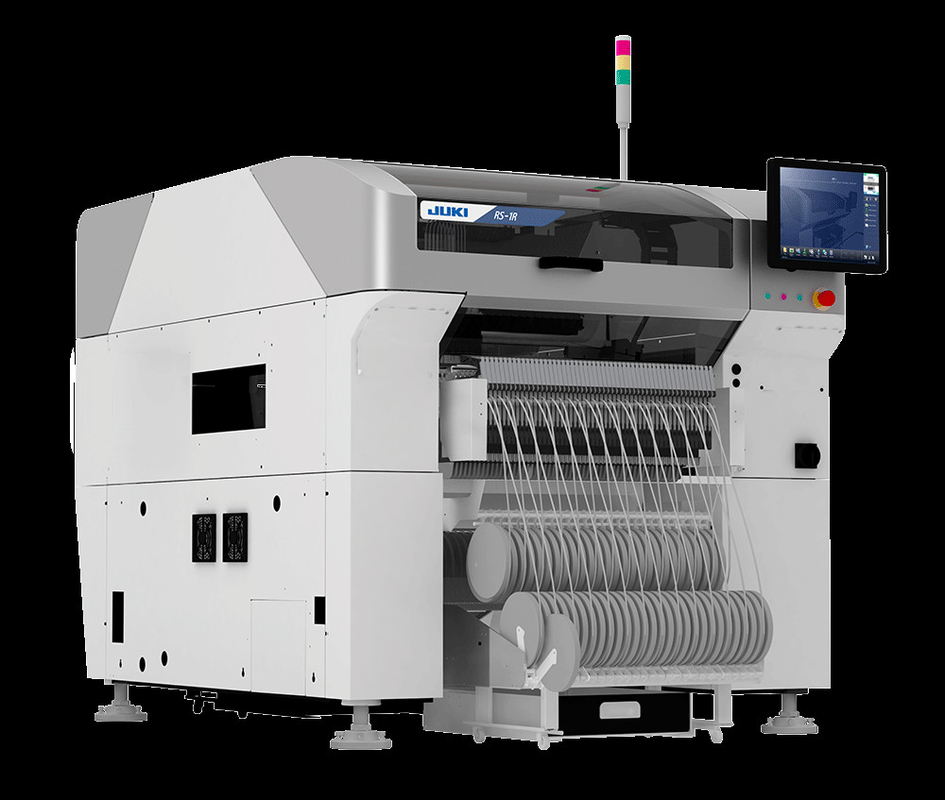

Name: JUKI FX-1R Chip Mounter Fast Smart Modular Mounter JUKI SMT Machine
Brand: Dongguan Kingfei Technology Co.,Limited
SKU: RS-1R
Price: 1,225.00 USD
Availability: InStock

MOQ:	1 unit
Standard Packaging:	wooden case
Delivery Period:	3~5days
Payment Method:	T/T, Western Union, MoneyGram
Supply Capacity:	2pcs

Detail Information

Product Description

Detail Information

Place of Origin

Japan

Brand Name

JUKI

Model Number

RS-1R

Speed:

Up To 47000 CPH

Component Range:

From 0201 To Large Connectors And ICs

Minimum Board:

50x50mm

Maxium Board Size:

650x 370 Single Clamping

Component Height:

25mm

Weight:

1700KG

Highlight:

JUKI SMT Chip Mounter

Smart Modular Chip Mounter

Fast Modular Chip Mounter

Product Description

Features:
Class leading speed, up to 47,000 cph
Newly developed “Takumi Head” with changing recognition sensor height
Optimum line balance and highest throughput
Wide component range from 0201 (metric) to large connectors and ICs
Optimal for LED placement

Fast Smart Modular Mounter
Model			RS-1R
Conveyor specification			standard	150mm conveyor extensions, upstream and downstream	250mm conveyor extensions, upstream and downstream
Board size	minimum		50×50㎜
	maximum	1 buffer	650×370 ㎜ (Single clamping)
		1 buffer	950×370 ㎜ (double clamping)	1,100×370 ㎜ (double clamping)	1,200×370 ㎜ (double clamping)
		3 buffers	360×370㎜	500×370㎜	600×370㎜
Component height			25㎜
Component size			0201*1 ～□74 ㎜ /150×50 ㎜
Placement speed	Optimum		47,000CPH
Placement speed	IPC9850		31,000CPH
Placement accuracy			±35μｍ(Cpk≧1)
Feeder inputs			max.112*2
Power supply			AC200 ～ 415V*3 3-phases
Apparent power			2.2kVA
Operating air pressure			0.5±0.05MPa
Air consumption			200L/min for internal vacuum generator, 50 l/min with optional vacuum pump
Machine dimensions (W×D×H)*4			1,500 × 1,810 × 1,440mm	1,800 × 1,810 × 1,440mm	2,000 × 1,810 × 1,440mm
Body weight			1,700kg
