JUKI FX-1 FX-1 XL Fast Smart Modular Mounter JUKI RX-1 Machine

Brand Name:	JUKI
Model Number:	RS-1
MOQ:	1 unit
Delivery Time:	3~5days
Payment Terms:	T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

Japan

Speed:

Up To 42000 CPH

Component Range:

0201 * 74mm X 74mm/ 50mm X 150mm

Board Size:

50x50mm ~ 650x650mm

Maxium Board Size:

650x 370 Single Clamping

Component Height:

0201 74mm

Weight:

1850KG

Packaging Details:

wooden case

Supply Ability:

3pcs

Highlight:

JUKI FX-1 XL Modular Mounter

JUKI FX-1 Modular Mounter

JUKI RX-1 Modular Mounter

Product Description

Features:
Class leading speed, up to 42,000 cph
0201* ~ 74mm×74mm / 50mm×150mm
Wide component range
Optimum line balance and highest throughput
Newly developed “Takumi Head” with changing recognition sensor height
JUKI’s laser centering technology is fast, accurate and reliable for a wide range of parts.

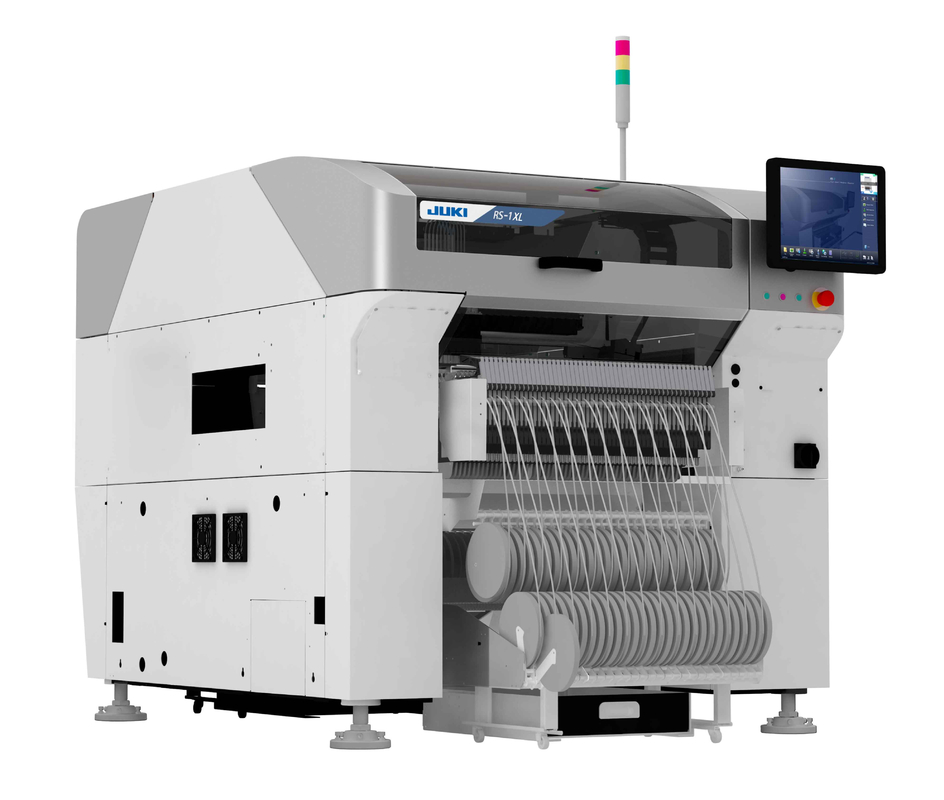

Fast Smart Modular Mounter
Model		RS-1XL
Board size		50×50㎜~650×560㎜
Component height		25㎜
Component size		0201*1～□74㎜/150×50㎜
Placement speed	Optimum	42,000CPH
Placement speed	IPC9850	29,000CPH
Placement accuracy		±35μｍ (Cpk≧1)
Feeder inputs		Max. 112*2
Power supply		AC200 ～ 415V*3 .3-phases
Apparent power		22 kVA
Operating air pressure		0.5±0.05 Mpa
Air consumption		200L / min
Machine dimensions (W×D×H)*4		2,109×2,000×1,440 ㎜
Body weight		1,850 kg
