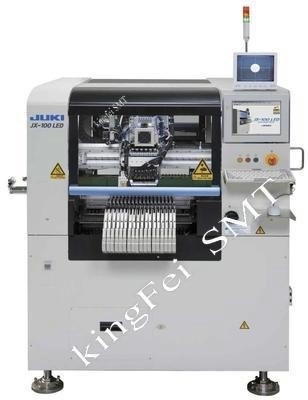

Compact High Speed Mounter for LED placement at low cost.
Compact but with 800×360 mm long board size capacity, the JX-100 LED is a low cost placement solution for notebook PCs, LCD monitors, and a wide variety of lighting equipment.
Superior Flexibility
High Speed Installation Functionality
Compact and Less Weight
Superior Versatility
User Friendly
Long Board Option
By applying the board twice, the mounter is applicable to long boards of up to a maximum of 800 mm x 360 mm, achieving a low-cost solution for LED chip installation for such fast-growing markets as laptop computers, LCD backlights and lighting equipment.
Nozzles for LED components
JUKI offers a variety of nozzles for the assembly of LED components.
Placement head
multi-nozzle laser head (6 nozzles)
Placement rate (max.)
19,300 cph laser centering (optimum)
15,300 cph laser centering (IPC 9850)
Component range
0201 to 33.5 x 33.5 mm
Component height (max.)
12 mm
Placement accuracy
±50 μm (Cpk ≥ 1) laser centering
Board dimension (max.)
800 x 360 mm
|
|
