| MOQ: | 1pcs |
| Delivery Period: | within 3days |
| Payment Method: | T/T, Western Union, MoneyGram |
| Supply Capacity: | 10pcs |
Feature

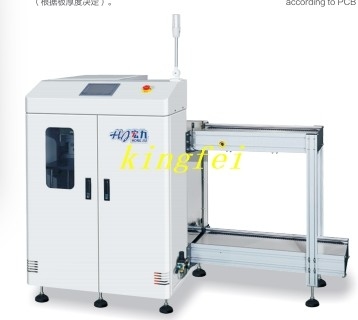

1.Use in SMT production line, magazine rack and vacuumadsorption to input and convey PCB ,Suitable for double PCB
process;
2.PLC Control, Touch screen,SMEMA Cable;
3.The lifting structure adopts the motor lifting setting, Pitchessetting 10mm,20mm,30mm,40mm,(Optional Converter);
4.Vacuum suction PCB,Stackable pcb 200-300 pieces (variesaccording to PCB thickness).
Technical parameters
| Ltem | Specifications |
| Board loading time | 15.0 sec |
| Working height (mm) | 920±30(std) |
| Power supply and power | AC220V±10v,50/60HZ |
| Transmission speed | 0.5-20 meters/minute |
| Compressed air flow rate | Maximum 10 liters/minute |
| Board Thickness | Minimum 0.6mm thickness |
Note: Without material box
| Model | VL-250W-TN | VL-330W-TN | VL-390W-TN | VL-460W-TN |

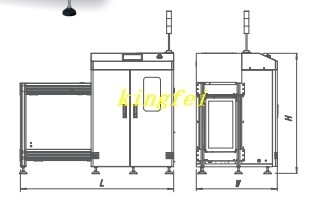

| Machine dimensions | 1780(L)*960(W)*1250(H) | 2100(L)*1045(W)*1250(H) | 2450(L)*1170(W)*1250(H) | 2450(L)*1370(W)*1250(H) |
| Circuit board size (mm) | 80*80-330*250 | 80*80-445*330 | 80*80-530*390 | 80*80~535*460 |
video
|
|
