| MOQ: | 1pcs |
| Delivery Period: | within 3days |
| Payment Method: | T/T, Western Union, MoneyGram |
| Supply Capacity: | 10pcs |
Feature

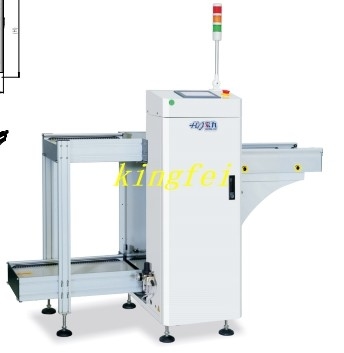

1.This unit is used in SMT Production line to send PCB fromequipment to magazine rack:
2.PLC control system and touch screen, better for performanceand operation:
3.Frame structure with sheet metal welding, aluminumconstruction, surface paint treatment;
4.The lifting structure adopts the motor lifting setting, Pitchessetting 10mm,20mm,30mm,40mm.(Optional Converter):
5.The method for conveying and collecting PCB adopts acylinder/motor, collecting and conveying speed can beadjusted. Protect PCB from damaged;
6.The magazine racks input from the top in and send out on thebottom, more effective for exchanging magazine racks:
7.SMEMA Cable;
8.3 magazine racks for cycle operating.
Technical parameters
| Ltem specification project | Specifications |
| Board loading time | 5.0 sec |
| Working height (mm) | 920±30(std) |
| Power supply and power | AC220V±10v,50/60HZ |
| Compressed air supply pressure | 4-6bar |
| Board Thickness | Minimum 0.4mm thickness |
Note: Without material box
| Model | UL-M-TN | UL-L-TN | UL-LL-TN | UL-XL-TN |
| Machine dimensions | 1680(L)*765(W)*1250(H) | 1920(L)*845(W)*1250(H) | 2260(L)*910(W)*1250(H) | 2260(L)*970(W)*1250(H) |
| Circuit boardsize(mm) | 80*80-330*250 | 80*80-445*330 | 80*80-530*390 | 80*80-535*460 |
| Bin size (mm) | 355*320*565 | 460*400*565 | 535*460*569 | 535*530*569 |
video
|
|
