| Brand Name: | KINGFEI SMT |
| Model Number: | LD-M-TN |
| MOQ: | 1pcs |
| Delivery Time: | within 3days |
| Payment Terms: | T/T, Western Union, MoneyGram |
Feature

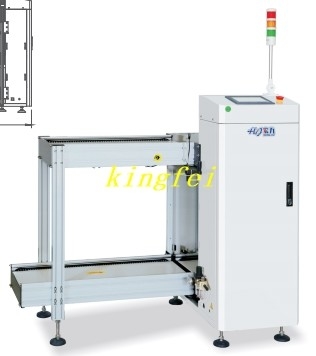

1.This unit is used in SMT Production line to send PCB out frommagazine rack to next equipment one by one;
2.PLC control system and touch screen, better for performanceand operation;
3.Frame structure with sheet metal welding, aluminumconstruction, surface paint treatment;
4.The lifting structure adopts the motor lifting setting, Pitchessetting 10mm,20mm,30mm,40mm,(Optional Converter);
5.The method for conveying PCB adopts a cylinder/motor with anautomatic deflation device. Protect PCB from damaged:
6.The magazine racks input from the bottom in and send out onthe top, more effective for exchanging magazine racks;
7.SMEMA Cable:
8.Install anti-static cover and L- type Loader (Optional).
Technical parameters
| Ltem specification project | Specifications |
| Board loading time | 5.0 sec |
| Working height (mm) | 920±30(std) |
| Power supply and power | AC220V±10v,50/60HZ |
| Compressed air supply pressure | 4-6bar |
| Board Thickness | Minimum 0.4mm thickness |
Note: Without material box
| Model | LD-M-TN | LD-L-TN | LD-LL-TN | LD-XL-TN |
| Machine dimensions | 1330(L)*765(W)*1250(H) | 1650(L)*845(W)*1250(H) | 1800(L)*910(W)*1250(H) | 1800(L)*970(W)1250(H) |
| Circuit board size (mm) | 80*80-330*250 | 80*80-445*330 | 80*80-530*390 | 80*80-535*460 |
| Bin size (mm) | 355*320*565 | 460*400*565 | 535*460*569 | 535*530*569 |
