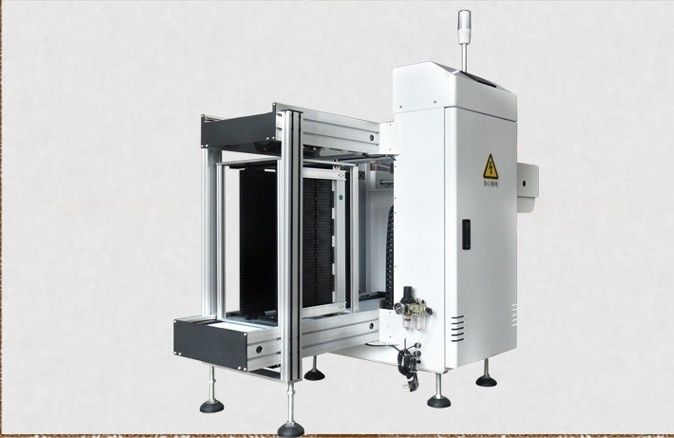

SMT PCB Magazine Loader Unloader Vacuum Type PCB Loader Strong Firm Stable Design

Brand Name: KingFei
Model Number: KF01
MOQ: 1pcs
Delivery Time: within 7days
Payment Terms: T/T, Western Union, MoneyGram
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE
Part Name:
PCB Loader, Unloader
Air Pressure And Air Consumption:
4-6 Bar, 10 Ltr/min Max
Power:
AC 110Volts Or 220 Volts, Single Phase
Transport Direction:
L-R/ R-L
No Of Magazine:
Upper Conveyor: 1 Magazine Lower Conveyor, 1 Magazine
Time Feed PCB:
Approx 6 Seconds Or Specify
Supply Ability:
1000pcs
Highlight:

SMT Assembly Machine

,

SMT Assembly Equipment

Product Description

SMT PCB LOADER MACHINE,LOADER MACHINE

* Strong, Firm and Stable Design

* User Friendly " Soft touch" LED Membracnce Control Panel or touch screen can be selected

* Top& Bottom pneumatic clamps to secure magazine rack

* No PCB Breakage guaranty beause of special gas circut design

* Automatical diagnosing fault code display function

* Durable cable and have long service life

* SMEMA Compatible

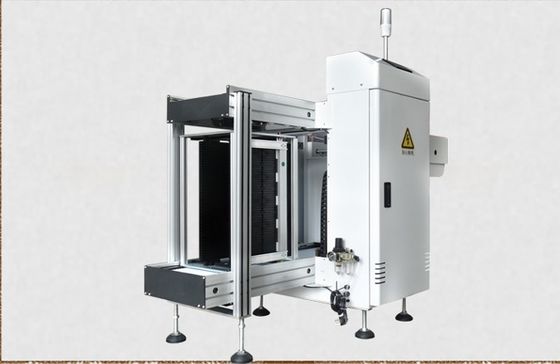

SMT PCB Magazine Loader Unloader Vacuum Type PCB Loader Strong Firm Stable Design 0

Description
KF-250LD
KF-330LD
KF-390LD
PCB delivery height
900 +/- 20mm
Direction
L-R/ R-L
PCB size(L*W)(MM)
50*50~350*250
50*50~455*330
50*50~530*390
Time Feed PCB
Approx 6 seconds or Specify
Magazine Change Over time
Approx 20 seconds or Specify
Indexing pitch
1-4(10mm pitch) or Specify
Power Source&Consumption
100. 230VAC 1Ph 300VA max
Air Pressure
4-6 bar
Air Consumption
10 ltr/min max
PCB Thickness
0.4mm min
Magazine Rack Size(L*W*H)(MM)
355*320*565
460*400*565
535*460*565
Machine Dimension
1100*780*1200
1400*860*1200
1500*920*1200
weight
140kg
180kg
220kg
