Professional SMT Automatic PCB Loader Unloader To Work With SMT Magazine Rack

Professional SMT Automatic PCB Loader Unloader To Work With SMT Magazine Rack

  • Professional SMT Automatic PCB Loader Unloader To Work With SMT Magazine Rack
Professional SMT Automatic PCB Loader Unloader To Work With SMT Magazine Rack
Product Details:
Place of Origin: China
Brand Name: KingFei
Certification: CE
Model Number: KF02
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Delivery Time: within 7days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 1000pcs
Contact Now
Detailed Product Description

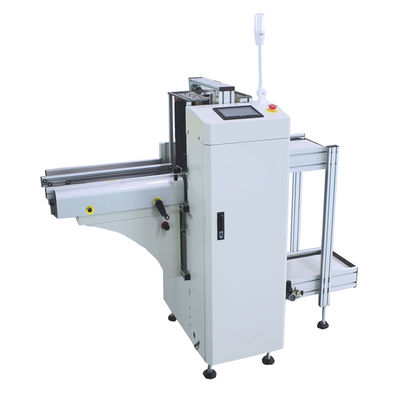

Part Name: SMT PCB Unloader Model: KF02
Condition: New Direction: L-R/ R-L
PCB Thickness: 0.4mm Min Time Feed PCB: Approx 6 Seconds Or Specify
High Light:

SMT Assembly Machine

,

SMT Assembly Equipment

Professional SMT Automatic PCB Loader Unloader to work with SMT Magazine Rack

Features:

1.Strong, firm and stable design

2.User friendly membrane control panel

3.Top & bottom pneumatic clamps to secure magazine rack.

4.No PCB breakage guaranty during loading & unloading

5.SMEMA compatible

6.Professional SMT Automatic PCB Loader Unloader to work with SMT Magazine Rack



Technique Parameter

Description This Unit is used for loading of PCBs
No. Of Magazines

Upper Conveyor: one magazine

Lower Conveyor: two magazines

Time Feed PCB Approx 6 seconds or Specify
Magazine Change Over time Approx 30 seconds or Specify
Indexing pitch 1-4(10mm pitch) or Specify
Power Source & Consumption 100. 230VAC 1Ph 300VA max
Air Pressure 4-6 bar
Air Consumption 10 ltr/min max
PCB Thickness 0.4mm min



Professional SMT Automatic PCB Loader Unloader To Work With SMT Magazine Rack 0

Specification Parameter unit:mm

Name size Model

Dimension

L x W x H

Effective PCB Size Weight-kg

Rack size

L x W x H

Loader M GP-LD-M 1330x765x1250 50x50-330x250 140 355x320x560
L GP-LD-L 1650x845x1250 50x50-445x330 200 460x400x560
LL GP-LD-LL 1800x909x1250 50x50-530x390 240 535x460x570
XL GP-LD-XL 1800x970x1250 50x50-530x460 300 535x530x570
Unloader M GP-UL-M 1930x760x1250 50x50-330x250 160 355x320x560
L GP-UL-L 2220x845x1250 50x50-445x330 220 460x400x560
LL GP-UL-LL 2660x909x1250 50x50-530x390 280 535x460x570
XL GP-UL-XL 2660x979x1250 50x50-530x460 320

535x530x570
