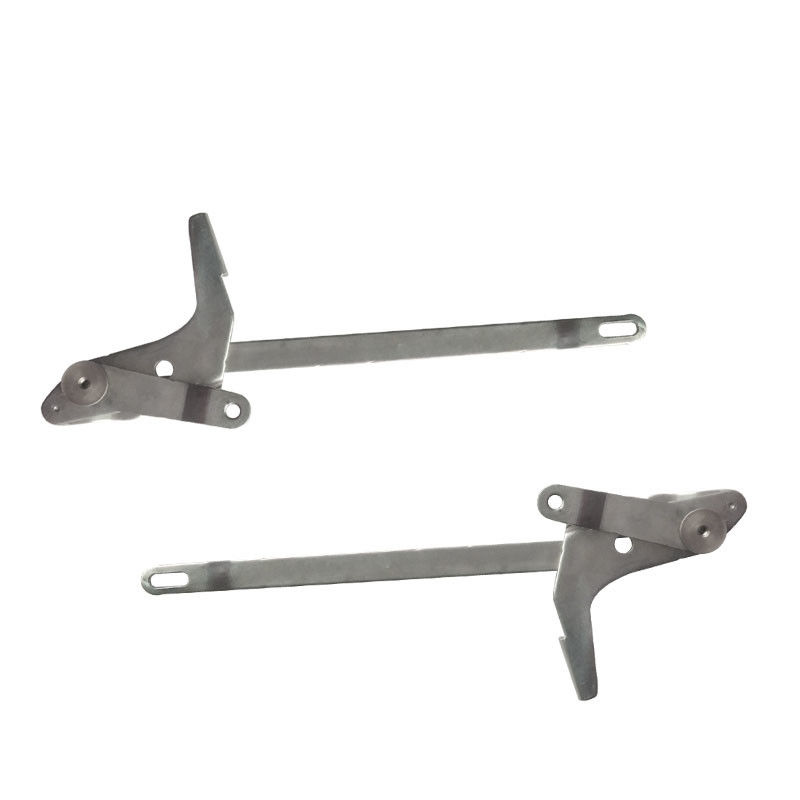

Yamaha CL8mm Tape Feeder Parts KW1-M114A-000 00X Hand Lever Assy

Yamaha CL8mm Tape Feeder KW1-M114A-000 00X HAND LEVER ASSY

Detail Information:

1, Part Name: Hand Lever Assy

2, Part Number: KW1-M114A-000

3, Model: CL8mm

4, Brand: Yamaha

KW1-M1510-000 Body Assy 1
K87-M112L-100 Sprocket Axis Assy 1
KW1-M112A-000 Racking Lever Assy 1
KW1-M1320-000 Sprocket Assy 1
2 KW1-M1112-000 Knock Pin (Front) 1
3 KW1-M1113-000 Knock Pin (Rear) 1
8 KW1-M111E-000 Spring 1
11 K87-M111H-200 Back Stopper 1
12 KW1-M111A-000 Spring 1
13 K87-M111B-000 Back Stopper Axis 1
14 K87-M111C-000 Plane Washer 1
19 K87-M112D-100 Coil Spring 1
22 K87-M111D-000 Push Pin 1
23 K87-M111F-100 Stopper Pin 1
24 K87-M111G-100 Push Pin 1
25 K87-M111P-000 Screw,Flat Head+ 1
26 K87-M111X-000 Screw,Set 1
27 K87-M111R-000 Screw,Set 5
29 KW1-M154V-000 Plate 1
30 K87-M11BA-000 Screw,Flat Head + 1
KW1-0607
8 1
BODY RACHET Unit CLY-823
CL-823(D type) 8mm-2P(0603)
KW1-M1540-010
KW1-M114A-000
KW1-M154S-000
No. Part No. Part Name Qty Remarks
KW1-M1540-010 TAPE GUIDE UNIT 1
KW1-M154S-000 TAPE GUIDE ASSY 1
KW1-M114A-000 HAND LEVER ASSY 1
1 KW1-M1177-000 MAIN ARM 1
3 KW1-M1543-010 SHUTTER PLATE 1
4 KW1-M1144-010 SHUTTER GUIDE PIN 2
5 KW1-M114N-000 GUIDE AXIS 1
6 KW1-M1345-010 LEAF SPRING 1
7 KW1-M134T-001 LEAF SPRING 1
9 KW1-M116K-000 LEVER AXIS 1
14 K87-M111C-000 PLANE WASHER 2
15 K87-M1181-000 ROD CONNECT 1
16 K87-M1546-000 ADJUST PLATE 1
18 K87-M1184-000 CONNECT PIN 1
19 KW1-M1185-001 MULTI CYLINDER 1
20 KW1-M111L-001 BARB CONNECTOR 2
21 K87-M111M-000 GASKET 2
22 KW1-M11B1-000 AIR HOSE (70mm) 1
23 K87-M111P-000 SCREW,FLAT HEAD 2
24 K87-M11BF-000 SCREW,FLAT HEAD+IB 2
25 K87-M1547-000 SCREW,TRUSS HEAD 2
26 K87-M1548-000 PLANE WASHER 2
27 K87-M53BS-000 SCREW,PAN HEAD+ 1
28 KW1-M11B6-000 BOLT,SOCKET HEAD SW 2
29 K87-M11B9-000 CIRCLIP E 1
TAPE GUIDE AIR CYLINDER Assy CLY-823
CL-823(D type) / CLI-823(A type) 8mm-0603
KW1-M1131-102
KW1-M1132-001
KW1-M113A-000
No. Part No. Part Name Qty Remarks
KW1-M1131-102 CLAMP LEVER UNIT 1
KW1-M1132-001 CLAMP LEVER ASSY 1
KW1-M113A-000 CLANK ARM ASSY 1
4 K87-M113D-001 ARM 2
6 K87-M113M-000 AXIS PIN 1
7 K87-M113L-100 CLAMP LEVER AXIS 1
9 K87-M113E-000 HINGE PIN 2 1
10 K87-M113H-000 PUSH PIN (L=10) 1
11 K87-M111V-000 SCREW,SET 1
12 K87-M111R-000 SCREW,SET 1
13 K87-M11D7-000 CIRCLIP E 2
TOGGLE CLAMP Assy CLY-823
CL-84 82E (D type) / CLI-84 82E(A type) 8mm
KW1-M115D-000
KW1-M1150-000
No. Part No. Part Name Qty Remarks
KW1-M1150-000 Handle Lever Assy 1
KW1-M115D-000 Guide Pin Assy 1
1 KW1-M114L-000 Cover 1
6 KW1-M155L-000 Hold Arm (Green) 1
7 KW1-M115M-000 Hold Arm Axis 1
9 KW1-M116F-000 Lever Axis Pin 1
10 KW1-M1165-000 Roller Axis 2
11
12 KW1-M116U-000 Roller 2
13 KW1-M111T-000 Screw,Thin Head 3
HOLD ARM ROLLER,COVER Assy CLY-823
CL-823(A type) 8mm-0603-7inch
KW1-M116D-000
KW1-M119L-000
KT-A08-1170-D
KW1-M1192-001
KW1-M1191-001
Continued from
Page 8-1
KW1-M119F-000
No. Part No. Part Name Qty Remarks
Roller Kit
KW1-M116D-000 Tension Lever Assy 1
KW1-M119L-000 Idle Roller Assy 1
KW1-M1192-001 Indentation Lever Assy 1
KW1-M119F-000 Drive Roller Assy 1
KW1-M1191-001 Drive Roller Unit 1
1 KW1-M116J-000 Metal Shaft 1

3 KW1-M116F-000 Lever Axis Pin 1

5 KW1-M159P-000 Spring 1
6 KW1-M119R-000 Collar 1

10 KW1-M119K-000 Spring 1

14 KW1-M11A1-011 Lower Guide Plate , R 1
15 KW1-M11A3-001 Lower Guide Plate , L 1
16 K87-M117B-000 Plane Washer 1

19 K87-M11BA-000 Screw,Flat Head 3
20 K87-M11BB-000 Screw,Flat Head+IB 1
21 K87-M21BB-000 Screw,Truss Head+ 1
22 K87-M111N-000 Screw,Pan Head+ 2
23 K87-M53BS-000 Screw,Pan Head+ 2

ROLL UP Unit CLY-823
CL-823(D type) 8mm-2P(0603)
KW1-M11D0-200
CL-82-0402
No. Part No. Part Name Qty Remarks
KW1-M11D0-200 Reel Holder Assy 1

5 KW1-M111S-000 Screw,Flat Head+ 1
6 K87-M111S-000 Screw,Flat Head+ 2

8 KW1-M110X-0×0 Serial No.Sticker(STD) 1
9 KW1-M170X-0×0 Serial No.Sticker(4P_T03) 1
10 KW1-M130X-0×0 Serial No.Sticker(1005) 1
11 KW1-M150X-0×0 Serial No.Sticker(0603) 1
12 KW1-M1B0X-0×0 Serial No.Sticker(2P_T03) 1
13 KW1-M190X-0×0 Serial No.Sticker(0402) 1
