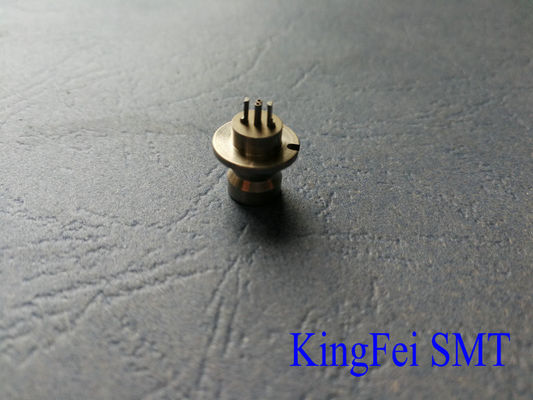

Panasonic HDP Chip Glue Dispensing Nozzle 2D2S Chip Nozzle for 1608mm Component

Panasonic HDP Chip Glue Dispensing Nozzle 2D2S High quanlity Nozzle 0.7/0.4 P=1.0 1021570412/1040840024 1608mm component​

Description:

1, Brand: Panasonic

2,Part Name: Glue Dispensing Nozzle

3,Part Number: 1021570412/1040840024

4, Component: 0.7/0.4 P=1.0

5,Type: 1608mm Component

6,Material: metal stainless

7,Machine: Panasonic HDP machine

Part Number (OEM) Description
10HLCO-M0000 NOZZLE(2D/2S-IC/S) (Φ1.0/Φ0.7, P=2.0)
10HFCO-M0000 NOZZLE(4D/2S-IC/L) (Φ1.25/Φ0.9, P=1.5)
10HKCO-M0000 NOZZLE/M(2D/2S-2125) (Φ0.8/Φ0.5, P=1.0)
10HGCO-M0000 NOZZLE/S(1D/1S-1608) (Φ0.7/Φ0.4)
10HJCO-M0000 NOZZLE/S(2D/2S-1608) (Φ0.7/Φ0.4, P=0.8)
Part Number (OEM) Description
10430 59 700 PANASONIC HDF DISPENDING NOZZLE 1D/1SØ0.6 /Ø0.3
10430 59 710 DISP. NL.E 2D/2SØ0.7 /Ø0.4 P=1.0
10430 59 720 DISP. NL. 4D/1SØ0.9 /Ø0.6 P=3.0
10483 70 220 DISP. NL. 2D/2SØ0.7 /Ø0.4 P=0.8
10483 70 240 DISP. NL. 2D/2SØ0.6 /Ø0.3 P=0.8
10483 70 260 DISP. NL. 2D/2SØ1.3 /Ø0.9 P=3.0
10483 70 410 DISP. NL. 2D/2SØ0.6 /Ø0.3 P=0.8
10483 70 420 DISP. NL. 2D/2SØ0.8 /Ø0.5 P=1.0
Part Number (OEM) Description
1021570402 PANASONIC DISPENDING NOZZLE VS 1D/1SØ0.7/Ø0.4
1021570542 L 2D/1SØ1.0/Ø7.0 P=3.0
1021570552 L 2D/1SØ1.3/Ø0.9 P=3.0
1021570562 S 2D/1SØ0.8/Ø0.5 P=1.2
1021570572 S 2D/2SØ0.8/Ø0.5 P=1.3
1021570412 S 2D/2SØ0.7/Ø0.4 P=1.0
1021570432 S 2D/2SØ0.7/Ø0.4 P=0.8
1021570422 L 4D/1SØ0.8/Ø0.5 P=3.0
Part Number (OEM) Description
1021570402 PANASONIC DETACH DISPENDING NOZZLE VS 1D/1SØ0.7/Ø0.4
1021570412 DETACH NZ S 2D/2SØ0.7/Ø0.4 P = 1.0
1021570422 DETACH NZ L 4D/1SØ0.8/Ø0.5 P = 3.0
1021570432 NL. S 2D/2SØ0.7/Ø0.4 P = 0.8
1021570542 NZ. L 2D/1SØ1.0/Ø0.7 P = 3.0
1021570552 NZ. L 2D/1SØ1.3/Ø0.9 P = 3.0
1021570562 NZ. S 2D/1SØ0.8/Ø0.5 P = 1.2
1021570572 NZ. S 2D/2SØ0.8/Ø0.5 P = 1.3
1040840014 NZ. VS 1D/1SØ0.7/Ø0.4
1040840024 NZ. S 2D/2SØ0.7/Ø0.4 P = 1.0
1040840034 NZ. L 4D/1SØ0.8/Ø0.5 P = 3.0
Part Number (OEM) Description
1022465002 01 MV2 #02 -Ø1.2
1022410132 02 #02 -Ø1.6
1022410133 02 #03 -Ø3.0
1022410134 02 #04 -Ø5.5
102247948601 #04 -Ø5.5 (WITH AL BUSH)
1022410135 02 #05 -Ø8.0
