521 Tab Mini Coil Tool Master SMT Spare Parts DIY Digital for RBA RDA Electronic Cigaret

China 521 Tab Mini Coil Tool Master SMT Spare Parts DIY Digital for RBA RDA Electronic Cigaret supplier

Large Image :  521 Tab Mini Coil Tool Master SMT Spare Parts DIY Digital for RBA RDA Electronic Cigaret

Product Details:

Place of Origin: China
Brand Name: KingFei
Certification: RoSH, FCC,CE

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: EXW
Packaging Details: paper box
Delivery Time: Within 1days after payment
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 10000pcs
Contact Now
Detailed Product Description
Part Name: 521 Mini Tab Size: 83 Mm X 61 Mm X 24 Mm
Input Voltage: 2.7 - 4.2V Resistance Measuring Range: 0.01 – 9.9Ω
Output Wattage: 31 - 33W Quiescent Current: 5 - 14 UA

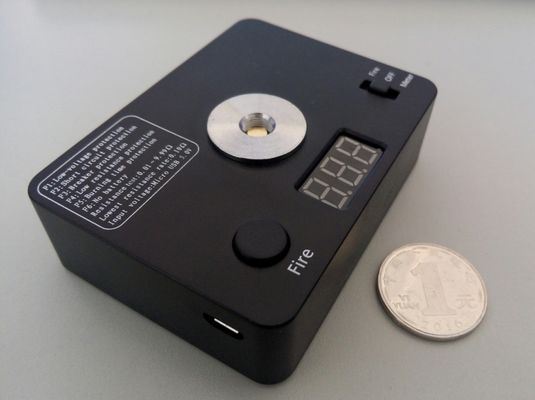

 521 Tab Mini Coil Tool Master Digital Coil Tool Master for Electronic Cigarette Coil DIY


521 Tab Mini Coil Master is a mini version of 521 Tab Coil Master, which is designed to increase the degree of safety and avoid building a dangerous coil for the mod you are using. The best choice of coil DIY lovers.


Features:
* Smaller in size
* Added battery level indicator on screen
* Added USB port for charging
* Coil resistance meter
* Dry burn DIY coils
* Reverse battery protection
* Low-voltage protection
* Compact size
* Short circuit protection
* Breaker protection
* Low resistance
* High temperature protection
* Coil resistance notifier on screen


Package Content:


1 x 521 Tab Mini Coil Master


Simple packing. Customary Packing from the factory, the packing is subject to change without notice.


Specifications
Size: 83 mm x 61 mm x 24 mm
Resistance measuring range: 0.01 – 9.9Ω
Lowest resistance rate: 0.1Ω
Connection : Spring loaded 510 pin
Battery: Lithium 18650, 3.7V (not included in the product)
Input voltage: 2.7 - 4.2V
Output voltage: 1.8 - 4.2V
Quiescent current: 5 - 14 uA
Burning protection: 14.5 - 15.5s
Output wattage: 31 - 33W
Operation Guide
OFF - Turn off
Fire (switch button) - Burning mode, press "fire" to dry burn coil
OHM Reader: Resistance measuring mode.


Order Tips
3 months guarantee.
