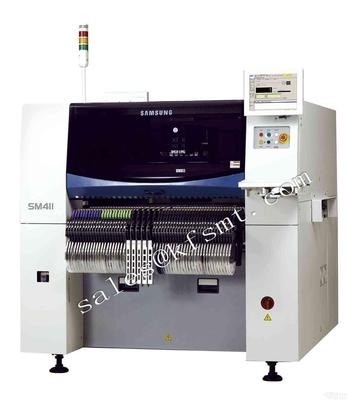

SM411 Dynamic Chip Shooter Samsung SM411 Mounter Machine

Name: SM411 Dynamic Chip Shooter Samsung SM411 Mounter Machine
Brand: Dongguan Kingfei Technology Co.,Limited
SKU: SM411
Price: 1,225.00 USD
Availability: InStock

Brand Name:	Samsung
Model Number:	SM411
MOQ:	1unit
Delivery Time:	3~5days
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Korea

Brand:

Samsung

Name:

Samsung Mounter Machine

Machine Model:

SM411

Condition:

Second Hand

Manufacture Year:

2010 2011 2013 2013

Placement Speed:

Chip 42K CPH

Packaging Details:

wooden case

Supply Ability:

10pcs

Highlight:

SM411 Mounter Machine

SM411 Dynamic Chip Shooter

Samsung SM411 Mounter Machine

Product Description

From micro chips for mobile devices to large boards for display -

SM400 series machines provide optimum placement solutions to various needs of customers through the super-high speed On-The-Fly

placement mechanism and the vision system with high reliability.

The SM411 has achieved the highest placement speed of 42,000 CPH forVersion:0.9 StartHTML:0000000105 EndHTML:0000002788 StartFragment:0000000141 EndFragment:0000002748

The SM411 has achieved the highest placement speed of 42,000 CPH for chips and 30,000 CPH for SOP parts

(based on IPC, respectively) in the world among machines of the same class by adopting a dual gantry

mechanism and On-The-Fly method, for which Samsung registered patents. In addition, by implementing high

accuracy placement of 50 microns at high speed, it allows placement of parts from the smallest 0402 chip to

14mm IC part. In the aspect of PCB applicability, it allows simultaneous feeding of 2 L460 x W250 PCBs,

increasing actual productivity. It also supports the production of L610mm long board for display as an option.

Features

Placement Speed : Chip 42K CPH (IPC9850)

Applicable Parts : Max. 0402 ~

14mm (Part height H=12mm)

Placement Accuracy :

3 /Chip

Applicable PCBs : L460 x W250 x 2Lane (Standard) / L510 x W460 x 1Lane (Standard) / Max. L610 x W460 x 1Lane

chips and 30,000 CPH for SOP parts

(based on IPC, respectively) in the world among machines of the same class by adopting a dual gantry

mechanism and On-The-Fly method, for which Samsung registered patents. In addition, by implementing high

accuracy placement of 50 microns at high speed, it allows placement of parts from the smallest 0402 chip to

14mm IC part. In the aspect of PCB applicability, it allows simultaneous feeding of 2 L460 x W250 PCBs,

increasing actual productivity. It also supports the production of L610mm long board for display as an option.

Features

Placement Speed : Chip 42K CPH (IPC9850)

Applicable Parts : Max. 0402 ~

14mm (Part height H=12mm)

Placement Accuracy :

3 /Chip

Applicable PCBs : L460 x W250 x 2Lane (Standard) / L510 x W460 x 1Lane (Standard) / Max. L610 x W460 x 1Lane
