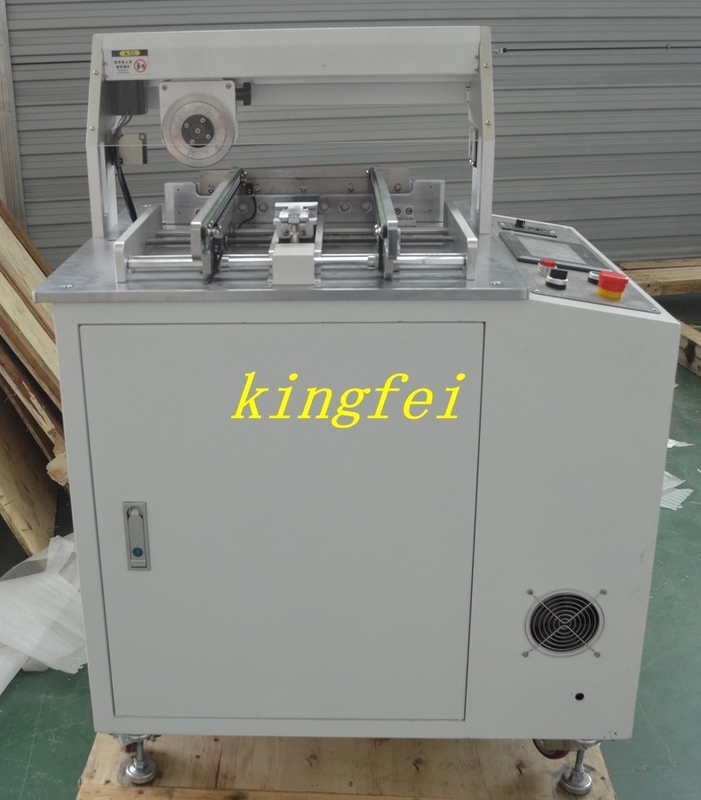

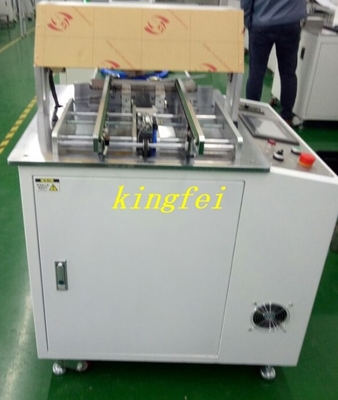

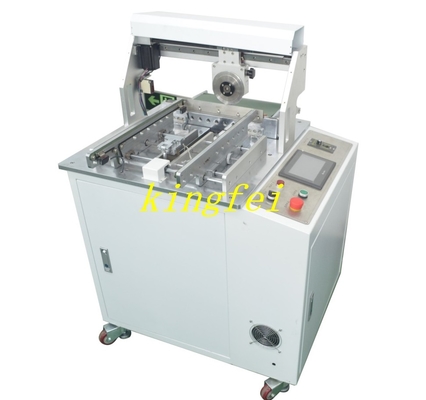

ASC-505 Automatic Cutting And Splitting Machine SMT Machine SMT Splitting Machine

ASC-505 Automatic Cutting and Splitting Machine SMT Machine SMT Splitting Machine


Advantage:
1.The traditional knife type splitter requires manual placement and positioning, which is time-consuming and labor-intensive, and has low production efficiency. However, this equipment has been upgraded from the original knife type splitter, with microcomputer control. It can set a single cutting stroke according to the size of the PCB board, without the need for manual positioning. It can also be connected to the trigger, saving labor, improving the efficiency of the splitter, and achieving a higher degree of automation.
2.Due to multiple cuts, the cutting process is very smooth, greatly improving the positioning ability of the V-CUT slot. Even for circuit boards with shallow V-CUT slots, there will be no situation where the V-CUT slot jumps out of the guide knife, avoiding the production of defective products.

Features:
1.Using microcomputer technology, the program can automatically control the cutting frequency and cutting stroke. The board width is 58mm-350mm, controlled by PLC, and can store 100 sets of data;
2.The distance between the upper round knife and the lower straight knife can be accurately adjusted, and the gap adjustment space between the upper and lower knife wheels is 0-15mm
3.The distance between the upper round knife and the lower straight knife can be accurately adjusted, and the gap adjustment space between the upper and lower knife wheels is 0-15mm
4.Equipped with automatic counting function, visually displaying output;
5.The machine is driven by a stepper motor and can be unlocked when powered on; Accurate positioning has solved the problem of changing the travel point of DC, AC, and motors due to inertia during operation after a period of time;
