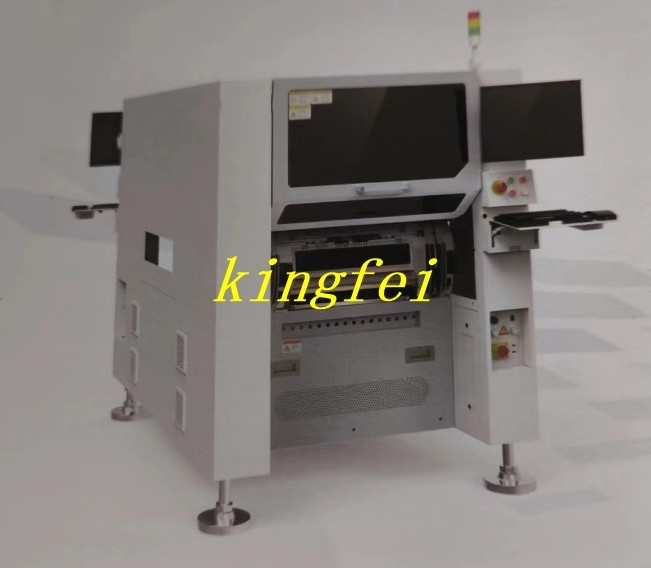

Automatic Special Shape Plug In Machine SMT Equipment Model Dual Module High Precision High Speed

Automatic special-shape plug-in machine SMT Equipment Model Dual module High precision High speed

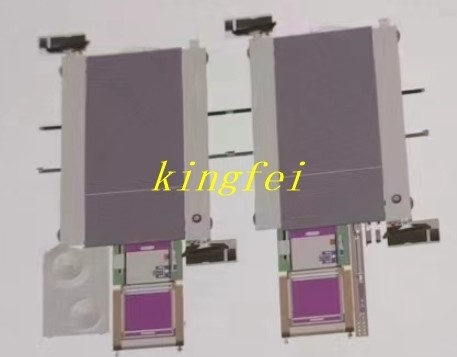

Dual module        High precision       High speed

Fast programming
Plug-in Accuracy:±0.025mm
Piug Speed:0.6s/component

High security

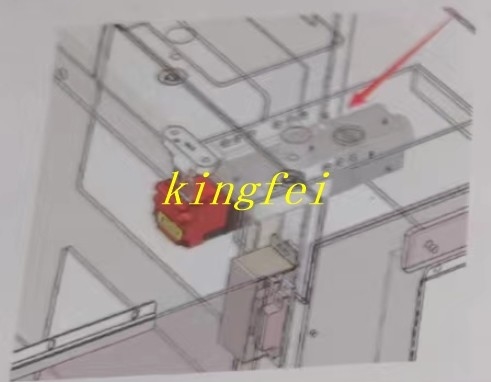

1.Access control induction and security lock.
2.The machine operates bilateral,with mutually exclusive buttons to ensure the operation safety
3.Contol handle instead of the traditional hand shake wheel to reduce misoperation,software action instead of manual action,to avoid collider hidden dangers.

High-speed
1.Imported high speed high precision 2550 screw
2.Three-stage rail system,independent drive control unit.
3.Independent direct connection servo Z axis R axis module.
4.Online physical visual image programming,support changing product wire rapidly.

High-accuracy
1.High-speed 5 million industrial camera,laser and led combination light source,support multi-continuous shot and multi-figure splicing
2.Enapsulate mapping algorithm,beat all PIN feeet and calculation,overall judgment.
3.X-ais cantilever length more than 1 meter of gantry dual-drive design.

High stability
1.Frame casting is integrated,modular design,with high consistency
2.Z-shaft head adopts drive control technology,edge calculation,reduce the number of cables

Mechanical standardization
1.Software between devices can be transplanted to each other
2.Before shipping make accuracy correction especially for X,Y,Z and R axes to ensure the standardardization of equipment

Intelligentization
1.Component characteristics,feeder size,feed header size and other information are registered to the database.
2.The software independently recommends relevant parameters,and the operators only need to confirm of fine-tune it,reduce programming time,greatly reduce labor workload.and reduce experience depence.
3.The modified ant colony algorithm recommends the optimal path.

Feeder system
1.We can provide various feeding solutions and flexible configuration according to different supply methods and the production needs.

Gripper/nozzle selection
1.In order to adapt to the diversity component,the most suitable gripper or nozzle is designed according to the shape of differet parts to provide guarantee for efficient and stable plug-ins
2.Gripper---convenient disassembly staong compatibility,stable and reliable suitable for a variety of alien components grasp.
3.Nozzle----convenient disassembly quick replacement suitable for a variety of heterogeneous components a machine multi-purpose.
