| MOQ: | 1pcs |
| Standard Packaging: | Paper pack |
| Delivery Period: | within 1~5days |
| Payment Method: | T/T, Western Union, MoneyGram |
| Supply Capacity: | 100000pcs |

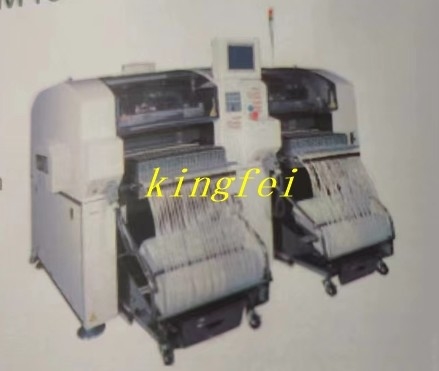

Panasonic high-speed SMT machine CM402 SMT Equipment Panasonic Placement Machine
Parameter Detail
Model: CM402-L
PCB Dimensions: L50mm×W50mm to L510mm×W460mm
PCB Exchange Time :0.9s (when the board length is up to 240mm)
Power Supply: 3-phase AC 200V±10V / AC 400V±10V, 2.5kVA
Pneumatic Source: 490kPa, 150L/min (standard, machine body only)
Dimensions: W2350mm×D2690mm×H1430mm
Mass: 3000kg (not including collective - exchange cart)
High - speed Mounting Head Maximum speed: 0.06s/chip (60,000cph); Placement accuracy: ±50μm/chip (Cpk≥1); Component dimensions: 0201 (0603) C,R to L24mm×W24mm
Multi - function Mounting Head Maximum speed: 0.21s/QFP (17,140cph); Placement accuracy: ±35μm/QFP (Cpk≥1); Component dimensions: 0402 (1005) C,R to L100mm×W90mm
|
|
