| Place of Origin: | Japan |
| Brand Name: | MPM/Speedline |
| Model Number: | Momentum BTB |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Delivery Time: | within 3days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 10pcs |
| Brand: | MPM/Speedline | Part Name: | Solder Paste Printing |
|---|---|---|---|
| Part Number: | Momentum BTB | Equipment Size: | 1195.4x1394x1589.4mm |
| Power: | 200 To 240 VAC (10%) Single Phase@50/60Hz,15A | Equipment Weight: | 797KG |
| High Light: | Momentum BTB Printing Machine,Speedline Solder Paste BTB Printing Machine,MPM Speedline Solder Paste Printer |
||

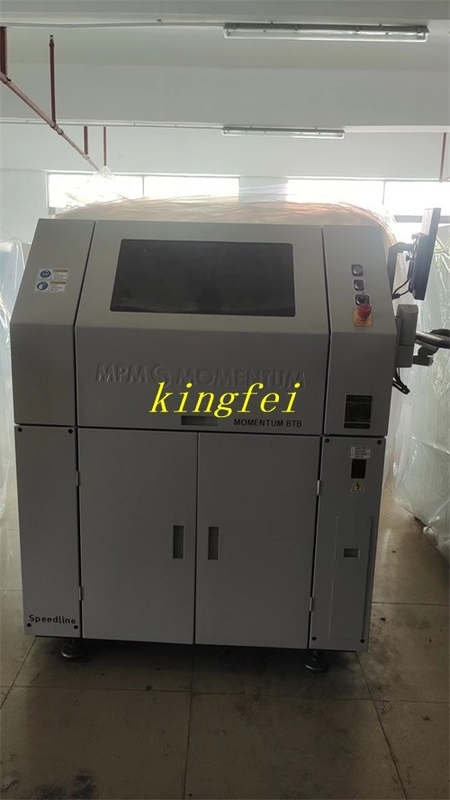

Momentum BTB Printing machine MPM/Speedline Solder Paste Printer
| MPM/Speedline Solder Paste Printer Momentum BTB | |
| MPM/Speedline Online equipment fully automatic | |
| Equipment size: | 1195.4x1394x1589.4mm |
| Equipment weight: | 797KG |
| Power requirements: | 200 to 240 VAC (10%) single phase@50/60Hz,15A |
| Air source requirements: | 100 psi, 4cm (standard operating mode) to 18m (vacuum wipe) (6.89 bar@1.9 Lsto8.5 L/s), 12.7 m diameter pipeline, outer diameter x9.5 mm inner diameter pipeline |
| parameter | |
| Maximum substrate size: | (X 609.6mmx508mm x Y) (24x20 inches) |
| Minimum substrate size: | (Kx50.8mm x 50.8mm) (2x2 inches) |
| Substrate thickness size: | 0.2~5.0 mm (0.008~0.20 inches) |
| Maximum substrate weight: | 4.5 kg (10 1bs) |
| Edge gap of substrate: | 3.0 mm (0.118 inches) |
| Bottom clearance: | 12.7mm (0.5 inches) standard configuration 25m (1.0 inches) |
| Substrate clamping: | Fixed bottom clamp, center vacuum |
| Substrate support method: | Magnetic thimble (optional: vacuum baffle, vacuum thimble, support block, dedicated fixture, patented automatic tool, Quik Tool) |
| pour: | Circuit boards larger than 20 inches require a dedicated workbench with a larger X size |
| Printing Parameters | |
| Maximum printing area (XxY): | 609.6mmx508mm(24x20inches) |
| Printing demolding(Snap-off): | 0~6.35 m (00.25inches) |
| printing speed: | 0.635mm/s~304.8mm/s(0.025 in/s~12 in/s) |
| Printing pressure: | 0~22.7 kg (0 1b~50 1bs) |
| Template frame size: | Template frame ruler 737mmx737mm (29x29inch), smaller size templates available |
| Images | |
| Visual field(FOV): | 10.6mmx8.0mm(0.417x0.315inch) |
| Type of image viewpoint reference point: | Standard shape reference point (see SMEMA standard), pad/hole |
| Camera system: | Single digital camera (MPM patented up/down vision system) |
| Performance | |
| Alignment accuracy and repeatability of the entire system: | ± 12 microns (0.0005 ") @ 60, Cpk ≥2.0 |
| Actual solder paste printing accuracy and repeatability: | ± 20 microns(士0.0008”)@ 60, Cpk ≥2.0 |
| Cycle time | |
| Momentum BTB | 9 second standard |
| Momentum BTB HIE | 7.5 second standard |
