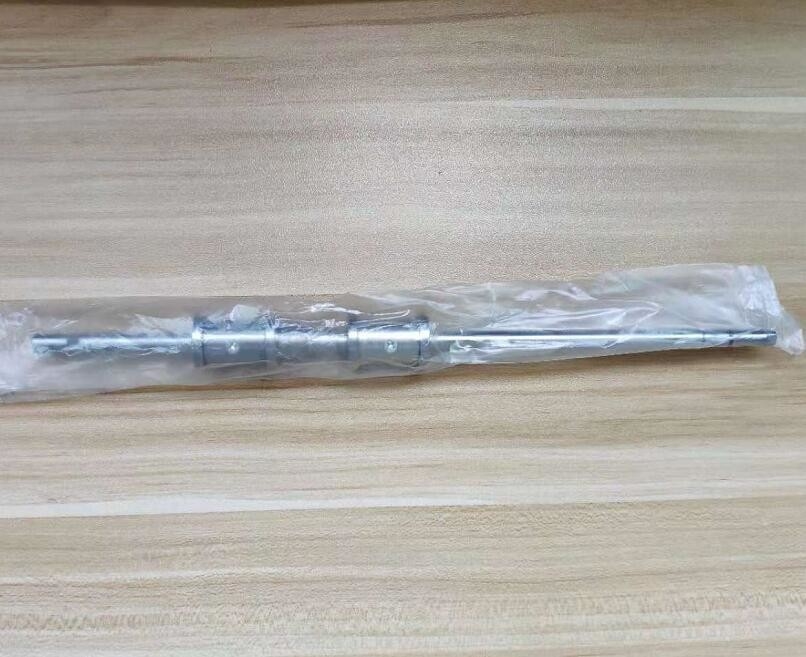

YV88X Nozzle Shaft Spline Index Assy KV7-M7170-00X Yamaha Ball Spline

YV88X Nozzle Shaft SPLINE, INDEX ASSY KV7-M7170-00X Yamaha Ball Spline

Detail Information:

1, Part Name: Spline Index Assy

2, Part Number:  KV7-M7170-00X

3, Machine Model: YV88X

4, Condition: New

1 KGA-M7104-00X BLOCK, GUIDE Z 2
2 KV7-M7106-00X GUIDE, Z AXIS 2
3 KV7-M7107-00X BRACKET, Z AXIS 1
4 KV7-M7108-00X BRACKET, Z AXIS 1
5 KV7-M7109-00X HOLDER, BRG.Z 2
6 KGA-M7115-01X BLOCK 1, Z AXIS 2 2003.5 M320124
7 KGA-M7116-01X BLOCK 2, Z AXIS 2 2003.5 M320124
8 KV7-M7117-00X GUIDE 1, SPRING 2
9 KGA-M7118-00X GUIDE 2, SPRING 2
10 KV7-M7120-01X SPRING, RETURN 2
11 KV7-M7124-00X NUT, LOCK 2
12 KV7-M7127-00X SET PIECE, LOCK 2
13 KGA-M7128-00X GUIDE, HOLDER 2
14 KV7-M7136-00X STOPPER, SEALING 2
15 KV7-M7138-00X PLAG, AIR 2
16 KV7-M7141-00X SPRING, LOCATE PIN 2
17 KV7-M7142-00X SHAFT, BLOCK 2
18 KV7-M7143-00X BLOCK, NOZZLE 2
19 KV7-M7144-00X GEAR 1, BEVEL 2
20 KV7-M7146-00X BUSH, LOCATE PIN 2
21 KV7-M7147-00X PIN, LOCATE 2
22 KV7-M7170-00X SPLINE, INDEX ASSY. 2
23 KV7-M7175-00X GEAR, N1 2
24 KV7-M7177-00X COLLAR, DOG N 2
25 KGA-M7178-00X PULLEY, SHAFT N 2
26 KGA-M7181-00X BRACKET, HOLDER 2
27 KV7-M7186-XXX BLOCK SHIM SEL. 2 00X/10X
28 KGA-M7187-XXX GUIDE SHIM SEL. 2 00X/10X/20X
29 KV7-M71S1-00X O-RING 14 SS-025
29-1 90200-02J025 O-RING 14 2001.11 M1X0094
30 KV7-M71S2-00X O-RING 4 SS-038
30-1 90200-02J038 O-RING 4 2001.11 M1X0094
31 KV7-M71S3-00X O-RING 2 SS-048
31-1 90200-02J048 O-RING 2 2001.11 M1X0094
32 KV7-M71S6-00X WASHER, SEAL 2
33 KV7-M71X2-00X E-RING 2 ETW-3.2
33-1 90440-02J032 CIRCLIP 2 2002.02.06 M220094
34 KV7-M71Y1-00X Y-PACKING 2 KSYA-3
34-1 90990-22J009 Y-PACKING 2 2001.11 M1X0094
35 KV7-M71Y3-00X Y-PACKING 8 KSYA-7
35-1 90990-22J010 Y-PACKING 8 2001.11 M1X0094
36 KV7-M71Y4-00X Y-PACKING 2 KSY P-11
36-1 90990-22J011 Y-PACKING 2 2001.11 M1X0094
37 KV7-M71Y6-00X Y-PACKING 2 KSYA-4
37-1 90990-22J013 Y-PACKING 2 2001.11 M1X0094
38 KV7-M71T1-00X BEARING 2 79M8ADF
39 KV7-M71T2-00X BEARING 8 WBC5-9ZZA
40 KV7-M71T3-00X BEARING 4 WBC7-13ZZA
41 KV7-M8148-00X O-RING S9 4 S9
41-1 90200-01J090 O-RING S9 4 2001.11 M1X0094
42 KG7-M7122-00X RACK, Z AXIS 2
42-1 KG7-M7195-00X RACK, Z AXIS 2 2003.5 M320124
43 91690-10004 PIN, SPRING 2
44 TLR4-M5 JOINT 2
45 SL4-M5 JOINT 4
46 KV7-M71C5-00X COVER, GEAR 1
47 KV7-M71C6-00X COVER, PIN 1
53 KV7-M7137-03X BODY NOZZLE 2 2 2003.09.19 M390081
54 KGA-M7157-00X HOLDER BAG 2
55 KV7-M7192-A0X PLUG ASSY 4
56 KV7-M711H-A0X NOZZLE BLOCK, SPARE 1
57 KV7-M712H-A0X SEAL STOPPER, SPARE 1
58 KV7-M713H-A0X AIR PLUG, SPARE 1
59 KGA-M711S-A0X FNC SHAFT 1, SPARE 1
60 98707-03006 SCREW, FLAT HEAD 8
61 92A08-03303 SCREW, SET 10
62 90990-02J006 SCREW, SET 4 2003.5 M350087
63 92A08-04303 SCREW, SET 12
64 91317-03008 BOLT, HEX. SOCKET HEAD 10
65 91317-03010 BOLT, HEX. SOCKET HEAD 4
66 91317-03012 BOLT, HEX. SOCKET HEAD 4
67 91317-03014 BOLT, HEX. SOCKET HEAD 8
68 91317-03016 BOLT, HEX. SOCKET HEAD 4
69 91317-03025 BOLT, HEX. SOCKET HEAD 8
70 91317-04018 BOLT, HEX. SOCKET HEAD 4
71 KV7-M7121-01X GEAR, HEAD R 2 Set w / KV7-M7122-01X 2003.2 M320004
72 KH5-M7108-00X COLLAR, DOG R 2
73 99009-17800 CIRCLIP 2
74 91317-03005 BOLT, HEX. SOCKET HEAD 4
75 91317-04006 BOLT, HEX. SOCKET HEAD 2
76 92907-03600 WASHER, PLAIN 8
77 98504-03004 SCREW, PAN HEAD 4
