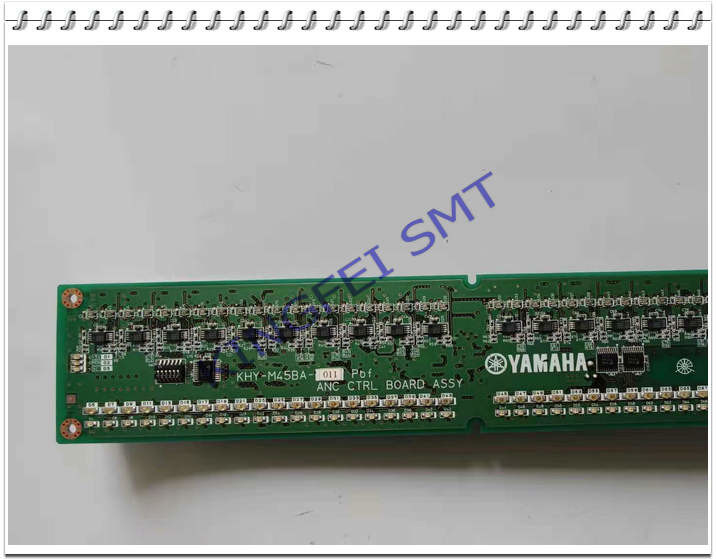

KHY-M45BA-011 YS24 ANC CTRL Board Assy KHY-M45BB-001 Nozzle Control Board

KHY-M45BA-011 YS24 ANC CTRL Board ASSY KHY-M45BB-001 Nozzle Control Board

Detail Information For ANC CTRL Board:

Part Name: YS24 Nozzle Board

Part Number:KHY-M45BA-011

Condition: Original new

Machine Model: YS24

1 KHY-M9607-00 PLATE,CLAMP 1
1-1 KHY-M9607-10 PLATE,CLAMP 1

2 KHY-M9608-00 PIN,SLIDE 6

3 KHY-M9609-00 PLATE,JOINT,CYL. 1

3-1 KHY-M9630-00 HOOK, BEARING 1

4 KHY-M9610-01 BOARD,CLEAR 1

5 KHY-M9611-00 SHEET,GUIDE,CLAMP 2

6 KHY-M9612-00 SHEET,SIDE 2

7 KHY-M9622-00 PLATE,SHIELD,LED 1

7-1 KHY-M9622-01 PLATE,SHIELD,LED 1 (2008/11/17) MEX0046 OK

7-2 KHY-M9622-02 PLATE,LED,SHIELD 1 (2009/4/9) MF30150 OK

7-3 KHY-M9622-03 PLATE,LED,SHIELD 1 (2009/4/16) MF40047 OK

8 KHY-M9603-00 HOLDER,BOTTOM,IN. 1

9 KHY-M9616-01 PLATE,STAND,ANC 1

10 KHY-M9617-00 PLATE,RIB,ANC 1

11 KHY-M9618-00 PLATE,base,ANC 1

12 KHY-M652G-00 CYLINDER,ANC ASSY 1

12-1 Delete (2008/10/01) H012224

13 KGS-M9604-00 JOINT CYL. 1

13-1 Delete (2008/10/01) H012224

14 KHN-M9613-50 BLOCK,CYLINDER 1

14-1 Delete (2008/10/01) H012224

15 KHN-M9614-50 BLOCK,CYL.,STOPPER 1

15-1 Delete (2008/10/01) H012224

16 $SC4-M5A SPEED ConTROLLER 2

17 91312-03008 BOLT HEX.SOCKET HEAD 2 M3X8

17-1 Delete (2008/10/01) H012224

18 91312-03020 BOLT HEX.SOCKET HEAD 2 M3X20

18-1 Delete (2008/10/01) H012224

19 91312-03030 BOLT HEX.SOCKET HEAD 2 M3X30

19-1 Delete (2008/10/01) H012224

20 91312-04012 BOLT HEX.SOCKET HEAD 8 M4X12

21 91312-05012 BOLT HEX.SOCKET HEAD 3 M5X12

22 KHY-M9601-00 NOZZLE HOLDER,IN. 1

22-1 KHY-M9601-01 NOZZLE HOLDER,IN. 1 (2008/6/19) ME60178 OK

23 KHY-M9602-00 base,NOZZLE HOLDER 1

23-1 KHY-M9602-01 base,NOZZLE HOLDER 1 (2008/6/19) ME60178 OK

24 KHY-M9606-00 MIRROR,SIDE 4

25 KHY-M9621-A0 base,NOZZLE D ASSY. 2

26 KHN-M9623-50 PIN 2

27 98702-03010 SCREW FLAT HEAD (+) 12

28 91312-04008 BOLT HEX.SOCKET HEAD 5 M4X8

29 KHN-M9619-50 VALVE 1

30 $TL4-M5M JOINT 3

31 90112-2AJ008 BOLT HEX.SOCKET HEAD 6

32 91312-04022 BOLT HEX.SOCKET HEAD 6 M4X22

33 98902-03006 SCREW BINDING HEAD 4

34 98902-03008 SCREW BINDING HEAD 18

35 $NK-2N NYLON CLIP 5

36 97602-04308 SCREW,PAN HEAD W/W 5

37 KHY-M45BA-00 ANC CTRL BOARD ASSY 1

37-1 KHY-M45BA-01 ANC CTRL BOARD ASSY 1 (2009/1/9) MF10004 OK

38 KHY-M9656-00 LABEL,A.N.C.30X 1 STD

39 KHY-M9656-10 LABEL,A.N.C.31X 1 Adjacent Nozzle

40 91312-06020 BOLT HEX.SOCKET HEAD 2 M6X20

41 92902-06200 WASHER PLAIN 2

42 KHY-M652G-10 CYLINDER AMC ASSY 1 (2008/10/01) H012224

43 KHY-M9613-00 BLOCK,CYLINDER 1 (2008/10/01) H012224

44 KHY-M9614-00 STOPPER,CYLINDER 1 (2008/10/01) H012224

45 KHY-M9615-00 PLATE,CYLINDER 1 (2008/10/01) H012224

46 KHY-M9627-00 BLOCK,link 1 (2008/10/01) H012224

47 KHY-M9628-00 COLLAR,link 1 (2008/10/01) H012224

48 KHY-M9631-00 COLLAR,FLOATING 1 (2008/10/01) H012224

49 KHY-M9632-00 BLOCK,FLOATING 1 (2008/10/01) H012224

50 KHW-M916A-00 BUSH 2 (2008/10/01) H012224

51 KHW-M916E-00 BUSH 1 (2008/10/01) H012224

52 KHW-M916G-00 COLLAR,JOINT 1 (2008/10/01) H012224

53 KHW-M916H-00 JOINT,CYL. 1 (2008/10/01) H012224

54 $SC4-M5A SPEED ConTROLLER 2 (2008/10/01) H012224

55 90933-02J063 BEARING 2 (2008/10/01) H012224

56 90990-41J129 COLLAR 4 (2008/10/01) H012224

57 91312-03010 BOLT HEX.SOCKET HEAD 2 M3X10 (2008/10/01) H012224

58 91312-03025 BOLT HEX.SOCKET HEAD 2 M3X25 (2008/10/01) H012224

59 91312-04012 BOLT HEX.SOCKET HEAD 10 M4X12 (2008/10/01) H012224

60 91312-04016 BOLT HEX.SOCKET HEAD 1 M4X16 (2008/10/01) H012224

61 91312-04022 BOLT HEX.SOCKET HEAD 1 M4X22 (2008/10/01) H012224

62 91312-05020 BOLT HEX.SOCKET HEAD 1 M5X20 (2008/10/01) H012224

63 92902-04200 WASHER PLAIN 3 (2008/10/01) H012224

64 92902-05200 WASHER PLAIN 1 (2008/10/01) H012224

65 92012-04010 BOLT BUTTON HEAD 2 (2008/10/01) H012224
