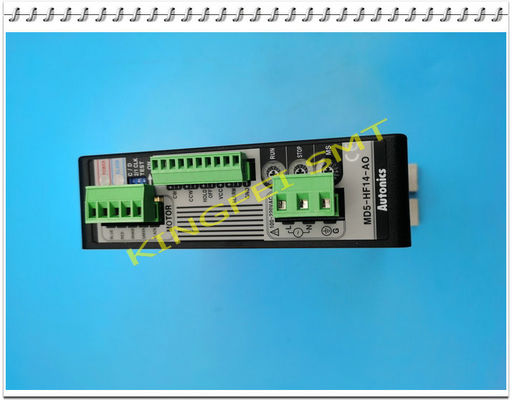

Operation method : Bipolar constant current pentagon drive
Applied Motor : 5-phase stepper motor
Resolution : FULL STEP(1-division), HALF STEP(2-division), Micro STEP(4, 5, 8, 10, 16, 20, 25, 40, 50, 80, 100, 125, 200, 250-division)
Power supply : 100-220VAC~ 50/60Hz
Max. Run Current : 1.4A/Phase
Approval : CE,
Operation method Bipolar constant current pentagon drive
Applied Motor 5-phase stepper motor
Resolution FULL STEP(1-division), HALF STEP(2-division), Micro STEP(4, 5, 8, 10, 16, 20, 25, 40, 50, 80, 100, 125, 200, 250-division)
Power supply 100-220VAC~ 50/60Hz
Max. Run Current 1.4A/Phase
Max. Current Consumption 3A
Output Zero point excitation
Number Of Axes 1-axis
Input pulse characteristic_pulse width Min. 1us(CW, CCW), Min. 1ms(HOLD OFF)
Input pulse characteristic_Duty Rate 50%(CW, CCW)
Input pulse characteristic_Rising/Falling time Below 130ns(CW, CCW)
Input pulse characteristic_Pulse input voltage [H]: 4-8VDC , [L]: 0-0.5VDC
Input pulse characteristic_pulse input current 7.5-14mA(CW, CCW), 10-16mA(HOLD OFF, DIVISION SELECTION, ZERO OUT)
Input pulse characteristic_Max. input pulse freq Max. 500kHz(CW, CCW)
Environment_Ambient temperature 0 to 50℃, storage: -10 to 60℃
Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH
Weight Approx. 840g(approx. 680g)
Max. current consumption: Based on the ambient temperature 25℃, ambient humidity 55%RH.
RUN current varies depending on the input RUN frequency, and the max. instantaneous RUN current varies also.
Max. input pulse frequency is max. frequency to be input and is not same as max. pull-out frequency or max. slewing frequency.
The weight includes packaging. The weight in parenthesis is for unit only.
Environment resistance is rated at no freezing or condensation.
