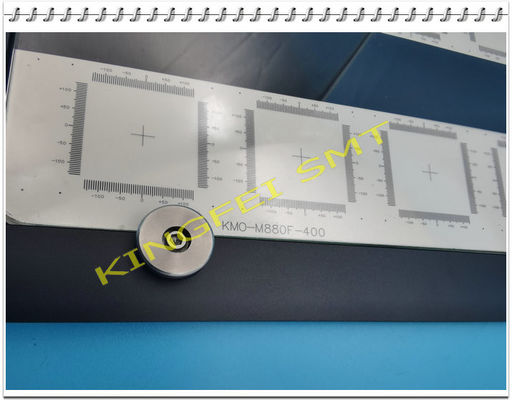

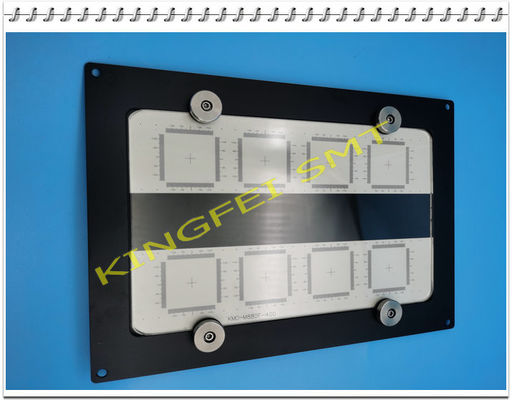

YV100XG YV100II Glass PCB Assy KM0-M880F-400 Yamaha YV Calibration Tool

YV100XG YV100II Glass PCB ASSY KM0-M880F-400 Yamaha YV Calibration tool

Detail Information:

1, Part Name: Glass PCB ASSY

2, Material: glass

3, Part Number: KM0-M880F-400

-00X GUIDE 2
11 KM1-M9611-03X CYL. U/D 1
12 KM1-M9612-00X JOINT CYL.U/D 1
13 KM1-M9613-01X PLATE GUIDE STOP 2
14 KV8-M9614-00X BASE, ANC 1
15 KM1-M9615-00X ROD ADJUST 1
16 KH5-M655A-A1X SENSOR 1-1 18
17 KM0-M9608-00X NEEDLE PIN 24
18 KV8-M9621-00X BASE, NOZZLE D 4
19 KH5-M655A-02X FIBER 1 SPARE PARTS
20 SC4-M5A SPEED CONTROLLER 4
21 K40-M7133-00X DAMPER 3 2

No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KV8-M9601-00X HOLDER ANC. 1
2 KV8-M9602-00X PLATE,CLAMP 1
3 KM1-M9603-01X PLATE,JOINT CYL. 1
4 KM1-M9604-01X JOINT,CYL. 1
4-1 KV8-M9604-00X J INT,CYL. 1 X3 1999/11 M950034 OK
5 KM1-M9605-02X CYLINDER,CLAMP 1
5-1 KM1-M9605-03X CYLINDER,CLAMP 1 2002/9/19 M160180 OK
6 KM1-M9606-01X GUIDE,PLATE CLMP 2
6-1 KV8-M9606-00X GUIDE,PLATE CLMP 2 X3 1999/11 M950034 OK
7 KM1-M9607-01X PLATE,HOLDER 1
8 KM1-M9608-01X PLATE,GUIDE 1
9 KM1-M9609-01X PLATE,BASE 1
10 KM1-M9610-00X GUIDE 2
11 KM1-M9611-02X CYLINDER,U/D 1
11-1 KM1-M9611-03X CYLINDER,U/D 1 2002/9/19 M160180 OK
12 KM1-M9612-00X JOINT,CYL.U/D 1
13 KM1-M9613-01X PLATE,GUIDE STOP 2
14 KM1-M9614-01X BASE,ANC 1
14-1 KV8-M9614-00X BASE,ANC 1 X3 1999/11 M950034 OK
15 KM1-M9615-00X ROD,ADJUST 1
16 KH5-M655A-A0X SENSOR,1-1 10
16-1 KH5-M655A-A1X SENSOR,1-1 18 X3 2000/6 M040102 OK
17 KM0-M9608-00X NEEDLE PIN 28
17-1 90990-19J004 NEEDLE PIN 28 (2001/12/25) M1Y0079 OK
18 KV8-M9621-00X BASE, NOZZLE D 4
19 KH5-M655A-02X FIBER 1 SPARE PARTS
20 K40-M7133-00X DAMPER 3 2 (2000/7/21) M070169
21 $SC4-M5A SPEED CONTROLLER 4
22 KG2-M8582-40X VALVE 1

No. Part No. Part Name Q'ty Remarks Date Revised No.
1 KV8-M7710-A1X NOZZLE 71A ASSY. 1
2 KV8-M7720-A1X NOZZLE 72A ASSY. 1
3 KV8-M7730-00X NOZZLE 73A 1
4 KV8-M7740-A0X NOZZLE 74A ASSY. 1
5 KGB-M7742-00X O-RING 1 KSP0004
5-1 90990-17J013 O-RING 1 2001.11 M1X0134
6 KV8-M7741-00X NOZZLE 74A 1
7 KV8-M7760-00X NOZZLE 76A 1
8 KV8-M77WL-A0X CIRCLE NOZZLE 7A 1
8-1 KV8-M7790-A0X NOZZLE 79A ASSY. 1 2002.9 M280135
