| Place of Origin: | China |
| Brand Name: | KINGFEI |
| Model Number: | LD-L-BN |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Delivery Time: | within 3days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 10pcs |
| Brand: | KINGFEI | Part Name: | Weight |
|---|---|---|---|
| Part Number: | LD-L-BN | Dimension(L*W*H MM): | 1650(L)*845(W)*1250(H) |
| PCB Size(MM): | 50*50-445*330 | Rack Size（L*W*H,MM): | 460*400*563 |
| Weight(KG): | 200KG |
feature
1.Strong,firm and stable design
2.Userfriendly 'soft touch' LED membrance control panel or touch screen can be selected
3.Top & bottom pneumatic clamps to secure magazine rack
4.No PCB breakage guaranty beause of special gas circuit design
5.Automatical diagnosing fault code display function
6. Wear-resistant cable and have long service life
7.SMEMA compatible
Technical parameters

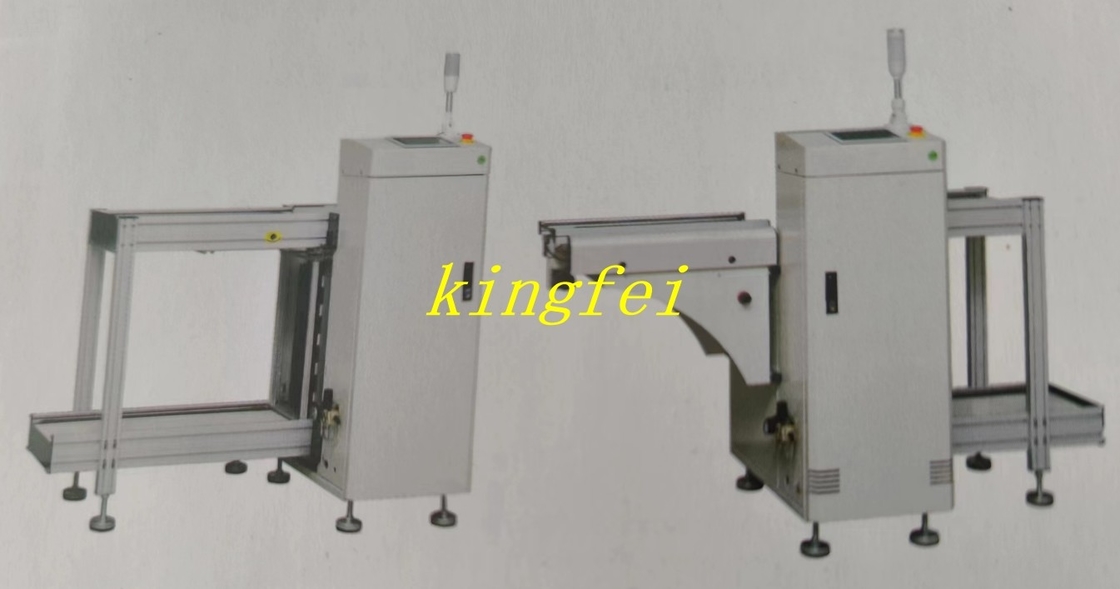

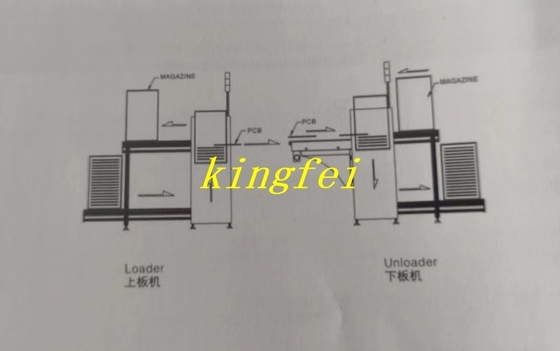

| description | This unit is used for loading and unloading of PCBs |
| Noof magazine | Upper Conveyor:1 magazine lower conveyor:2 mazgazine |
| Time feed PCB | seconds 6Approx.or specify |
| Mazacine | Approx.30 seconds or specify |
| Indexing pitch | 10.20.30.40mmorspecify |
| Power supply | AC 110 volts or 220 volts; single phase |
| Power | Max300VA |
| Air prssure and Air consumption | 10ltr/min max |
| Transport height | 900±20MM (or customer specified ) |
| Transport direction | From left to righ or right to left |
Specification
| Machinename | Model | Dimension(L*W*H MM) | PCB size(MM) | Rack siz(L*W*H,MM) | Weight(KG) |
| Weight(kg) | LD-M-BN | 1330*765*1250 | 50*50-330*250 | 355*320*563 | 140KG |
| Weight(kg) | LD-L-BN | 1650*845*1250 | 50*50-445*330 | 460*400*563 | 200KG |
| Weight(kg) | LD-LL-BN | 1800*909*1250 | 50*50-530*390 | 535*460*563 | 240KG |
| Weight(kg) | LD-XL-BN | 1800*980*1250 | 50*50-530*460 | 535*530*563 | 300KG |
| Unloader | UL-M-BN | 1730*765*1250 | 50*50-330*250 | 355*320*563 | 160KG |
| Unloader | UL-L-BN | 2065*845*1250 | 50*50-445*330 | 460*400*563 | 220KG |
| Unloader | UL-LL-BN | 2260*909*1250 | 50*50-530*390 | 535*460*563 | 280KG |
| Unloader | UL-XL-BN | 2260*980*1250 | 50*50-530*460 | 535*530*563 | 320KG |
