| Place of Origin: | Japan |
| Brand Name: | KINGFEI |
| Model Number: | BN-M-TN |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Delivery Time: | within 3days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 10pcs |

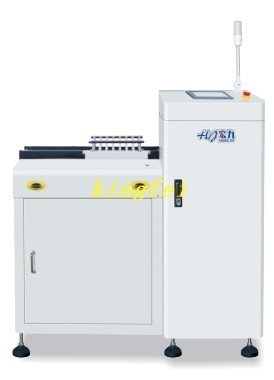

| Brand: | KINGFEI | Part Name: | Loader Unloader |
|---|---|---|---|
| Part Number: | BN-M-TN | Equipment Size: | 880(L)*920(W)*1500(H) |
| Power: | 80*80-350*250 | Power Supply And Power: | AC220V±10v,50/60HZ |
| High Light: | Filter Cache Board Printing Machine,Filter Cache Board Receiving Printing Machine |
||
Feature
1.Use in SMT production line ,setting up behind AOl and SPlNG,OK PCB can be temporary storage and for repairing;
2.PLC control;
3.Man-machine interface control panel, easier operation;
4.PCB loading quantity: 15 pieces or customized according to customers’need;
5.According to the signal from the upper equipment, the NG/OK board is automatically stored;
6.With first in, first out, first in last out, straight through function;
7.Can remotely judge true and false;
8.Can be operated remotely, turn bad PCB in wrong judged intogood, conveyor next equipment;
9.SMEMA Cable.
Technical parameters
| Ltem | Specifications |
| PCB cycle time | 6-10S |
| Compressed air supply pressure | 5kgf/cm² |
| Compressed air flow rate | Maximum 10 liters/minute |
| Power supply and power | AC220V±10v,50/60HZ |
| Working height (mm) | 920±30(std) |
| Board Thickness | Minimum 0.6mm thickness |
| Belt type | 4mm flat strip |
Note: Without material box
| Model | BN-M-TN | BN-L-TN | BN-LL-TN | BN-XL-TN |
| Machine dimensions | 880(L)*920(W)*1500(H) | 1150(L)*1050(W)*1500(H) | 1325(L)*1100(W)*1500(H) | 1325(L)*1150(W)*1500(H) |
| Circuit board size (mm) | 80*80-350*250 | 80*80-445*330 | 80*80-535*390 | 80*80-535*460 |
Contact Person: Sandy
Tel: +8617324492760
