| Place of Origin: | Japan |
| Brand Name: | KINGFEI |
| Model Number: | NL-M-TN |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Delivery Time: | within 3days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 10pcs |

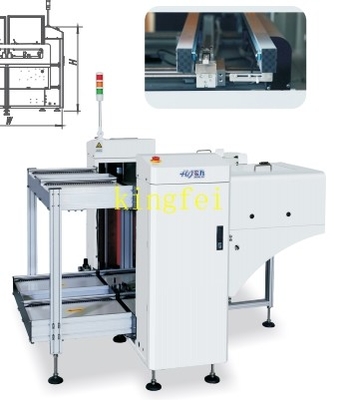

| Brand: | KINGFEI | Part Name: | NG/OK Board Harvester |
|---|---|---|---|
| Part Number: | NL-M-TN | Equipment Size: | 1510(L)*1530(W)*1250(H) |
| Power: | 80*80~330*250 | Power Supply And Power: | AC220V±10v,50/60HZ |
| High Light: | OKBoard Harvester Printing Machine,NG Printing Machine |
||
Feature
1.Used for AOl of SMT production line to automatically receive OK/NGsignal sent by AOl; OK PCB is directly pushed into OK magazine rackand NG PCB is pushed into NG magazine rack after translation;
2.PLC control system + touch screen + LED signal light;
3.High performance constant speed brake motor and Taiwan TBI full setof ball screw for lifting and lowering, stable performance: Smoothparallel screw width adjustment mode;
4.Use SMC cvlinder to push PCB,avoid PCB from snap- gauge;
5.The control system adopts PLC programmable controller, Photoelectricsensor control start, automatic storage (NG) PCB board:
6.SMEMA Cable.
Technical parameter
| Ltem | Specifications |
| Step selection | 10.20.30.40mm selectable |
| Power supply and power | AC220V±10v,50/60HZ |
| Working height (mm) | 920±30(std) |
| Air pressure and flow rate | 4-6 bar, maximum 10 liters/minute |
Note: Without material box
| Model | NL-M-TN | NL-L-TN | NL-LL-TN | NL-XL-TN |

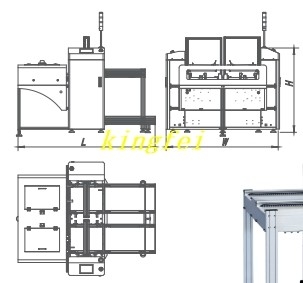

| Machine dimensions | 1510(L)*1530(W)*1250(H) | 1910(L)*1700(W)*1250(H) | 2260(L)*1760(W)*1250(H) | 2260(L)*1900(W)*1250(H) |
| Circuit board size (mm) | 80*80-350*250 | 80*80-445*330 | 80*80-535*390 | 80*80-535*460 |
