|Part Name:||Tape Machine||Feature:||Semi-Auto|
|Size:||L170 X W60 X H60 Cm||Weight:||35KG|

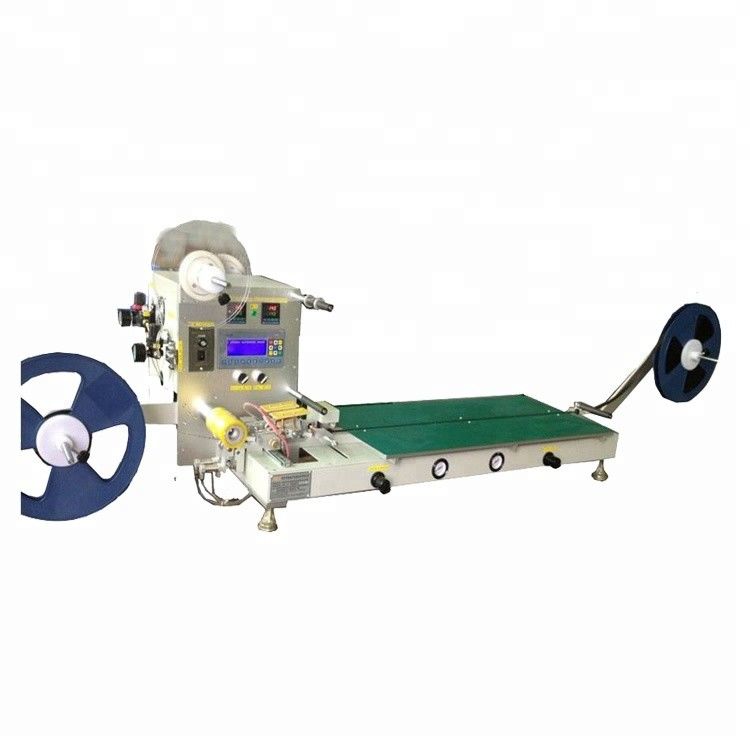

Semi-Auto SMD Taping Machine for SMD components packaging Tape Machine
Use: the taping packages of a variety of surface mounting devices (SMD)
Capability and parameter:
Packing mode: Automatic sealing and furling and manual emptying.
Operating mode: Text screen
packing speed:the speed may be adjusted and is as high as 400 meters/hour, and the running speed of the machine is adjusted according to the speed of loading parts by operators and the specific sealing process requirements in the actual production.
Applicable scope: 8 to 72mm carrier tapes, and 8 to 200mm specifications can be customized.
With inching sealing and flat pressing continuous sealing, applicable to self-adhesive cover tape and heat sealing cover tape; adjustable tension intensity.
PLC control, stable temperature and accurate count; the touch-screen LCD interface is used so that the operations and settings are more simple and intuitive.
With more functions: starving detection and alarm function, and the front and rear empty lead tape and the actual number of loading can be set; the number of tapes every time and seal pressure pause and reset time (0.1 to 99.9 seconds) and other parameters be more accurately set, and a video detector can be selected.
Power supply: AC220V,50H Power consumption: 400W
Pressure: 0.4 ~ 0.6MPa.
Temperature range: room temperature ~ 300 °C.
Volume: L170cm × W60cm × H60cm, Other specifications can be customized
Packaging reel diameter within 560mm, Empty reel diameter within 980mm.
Name: Professional Semi-Auto SMD Taping Machine for SMD components packaging
|Packing mode||Automatic sealing, furling and manual empty|
|Operating mode||Touch screen|
|Packing speed||Adjustable, as high as 400 meters per hour|
|Applicable scope||8 to 72 mm and 8 to 200mm carrier tapes|
|Function||Starving detection and alarm|
|Pressure||0.4 to 06 MPa|
|Temperature range||Room temperature to 300 centigrade degree|
|Volume||L170 x W60 x H60 cm|
