| Place of Origin: | China |
| Brand Name: | KingFei |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Delivery Time: | 7~10days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100pcs |
| Brand: | KingFei | Part Name: | No Clean Free Solder Paste Heater |
|---|---|---|---|
| Voltage: | 220V 60HZ | Work Ability: | Thawing 4 Cans, 8 Cans And 12cans, 500g Per Can |
| Wieght: | 5KG | Size: | L500xW520xH320mm |
| High Light: | SMT Assembly Machine,SMT Assembly Equipment |
||

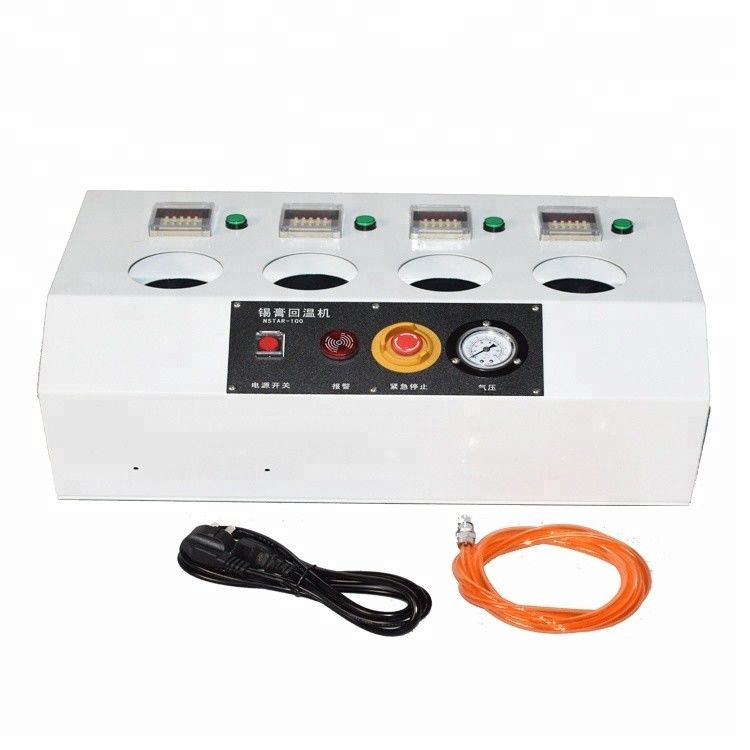

SMT Production Line Usage Automatic No Clean Lead Free Solder Paste Heater
Type: Thawing machine
Power Source: Electric
Dimension(L*W*H): L500 x W300cm x H230mm
Weight: 15KG
Warranty: One year
Condition: New
Place of Origin: Guangdong, China (Mainland)
Voltage: 220V 60HZ
Working Ability: Thaw 4 cans, 8 cans and 12 cans
Capacity of each Can:500g
Machine size for 4 cans:
Machine size for 8 cans:
Machine size for 12 cans:
Name: SMT Production Line Usage Automatic No Clean Lead Free Solder Paste Heater
Use: Thaw Solder Paste to Normalize the temperature
rheology and all paste's characteristics are strongly dependent from the "not stressing" reaction moving from low temperature to Room Temperature.
Specification
| Working Ability | Thawing 4 cans, 8 cans and 12cans, 500g per can |
| Voltage | 220V 60HZ |
| Pressure | 5KG |
| Machine size of 4 cans | L500xW300xH230 (mm) |
| Machine size of 8 cans | L500xW520xH320 (mm) |
| Machine size of 12 cans | L700xW520xH320 (mm) |
| Time showing | LED Time Display |
Features
1. Thaw multi cans of solder paste as the same time
2. Intelligent thawing, control thawing time effectively
3. Electric parts are the imported
4. Each Can has the independent time control
5. Can descends automatically after time setting, and would ascend after job is finished
6. If power is cut off before reaches time , solder paste can would be kicked out
