High Speed Surface Mount Placement Machine Fuji Scalable Placement Platform NXT Ⅲ

China High Speed Surface Mount Placement Machine Fuji Scalable Placement Platform NXT Ⅲ supplier

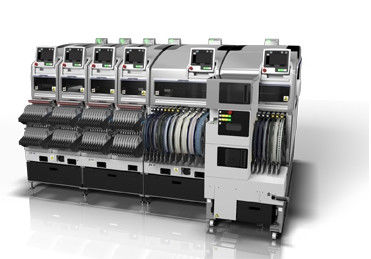

Large Image :  High Speed Surface Mount Placement Machine Fuji Scalable Placement Platform NXT Ⅲ

Product Details:

Place of Origin: Japan
Brand Name: FUJI
Model Number: NXT III

Payment & Shipping Terms:

Minimum Order Quantity: 1unit
Delivery Time: within 2 weeks
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 3unit
Contact Now
Detailed Product Description
Brand: FUJI Name: FUJI Scalble Placement Platform NXT Iii
Module Width: 320mm Placing Accuracy: +/-0.038 (+/-0.050) Mm (3σ) Cpk≥1.00*
Lntelligent Feeders: Support For 4, 8, 12, 16, 24, 32, 44, 56, 72, 88, And 104 Mm Wide Tape Part Size: 0402 (01005") To 7.5 X 7.5 Height: Up To 3.0 Mm

Original New And Used Machine Fuji Scalable Placement Platform NXT ⅢHigh Speed Surface Mount Placement Machine Fuji Scalable Placement Platform NXT Ⅲ

1.Special feature
1.1 Improved productivity:A faster XY robot and faster tape feeders, as well as a newly developed "flying vision" parts camera,mean increased placing ability for all part sizes and types.
The new H24G high-speed head achieves 37,500 cph (chips per hour)(Productivity priority mode)per module,a 44% improvement from the fastest speed of the NXT II.
1.2 0201 mm part support +/- 0.025 mm placing accuracy*:As well as supporting the smallest parts currently being used in mass production (0402 mm, 01005"), the NXT III can also handle the next generation of components heading for the market - 0201 mm parts.
By improving machine rigidity and further refining its independent servo control and vision recognition technology, Fuji has achieved a placing accuracy for small chip parts of +/- 0.025 mm* (3sigma, Cpk≥1.00).
1.3 Improved usability:The GUI of the original NXT was widely praised for making use of intuitive and easy-to-understand pictograms instead of relying on language-based instructions.
This interface is now combined with a touchscreen panel to make operation even easier. This reduces the number of button pushes required and makes selecting commands easier, as well as improving quality by reducing the chance of performing the wrong command.
1.4 High compatibility:Many of the main units from the NXT II such as placing heads, nozzle stations, feeders, tray units, and feeder pallet exchange units can be used on the NXT III without any modifications.

  •
  • Specifications
  •   M3 III M6 III
    Applicable PCB size
    (L x W)
    48 x 48 mm to 250 x 510 mm (double conveyor)*
    48 x 48 mm to 250 x 610 mm (single conveyor)
    *Double conveyors can handle PCBs up to 280 (W) mm. PCBs larger than 280 (W) mm must be produced by changing the double conveyor to single lane production mode.
    48 x 48 mm to 534 x 510 mm (double conveyor)*
    48 x 48 mm to 534 x 610 mm (single conveyor)
    *Double conveyors can handle PCBs up to 280 (W) mm. PCBs larger than 280 (W) mm must be produced by changing the double conveyor to single lane production mode.
    Part types Up to 20 types of parts (calculated using 8 mm tape) Up to 45 types of parts (calculated using 8 mm tape)
    PCB loading time For double conveyor: 0 sec (continuous operation)
    For single conveyor: 2.5 sec (transport between M3 III modules),
    3.4 sec (transport between M6 III modules)
    Placement accuracy
    (Fiducial mark standard)
    H24G

    : +/-0.025 mm (Standard mode) / +/-0.038 mm

    (Productivity priority mode) (3sigma) cpk≥1.00

    V12/H12HS

    : +/-0.038 (+/-0.050) mm (3sigma)

    cpk≥1.00

    H04S/H04SF : +/-0.040 mm (3sigma) cpk≥1.00
    H08/H04 : +/-0.050 mm (3sigma) cpk≥1.00
    H02/H01/G04 : +/-0.030 mm (3sigma) cpk≥1.00
    H02F/G04F : +/-0.025 mm (3sigma) cpk≥1.00
    GL : +/-0.100 mm (3sigma) cpk≥1.00



    H24G : +/-0.025 mm (Standard mode) / +/-0.038 mm (Productivity priority mode) (3sigma) cpk≥1.00
    V12/H12HS : +/-0.038 (+/-0.050) mm (3sigma)cpk≥1.00
    H08M/H04S/H04SF : +/-0.040 mm (3sigma) cpk≥1.00
    H08/H04/OF : +/-0.050 mm (3sigma) cpk≥1.00
    H02/H01/G04 : +/-0.030 mm (3sigma) cpk≥1.00
    H02F/G04F : +/-0.025 mm (3sigma) cpk≥1.00
    GL : +/-0.100 mm (3sigma) cpk≥1.00



    Productivity
    H24G : 37,500 cph (Productivity priority mode) /35,000 cph (Standard mode)
    V12 : 26,000 cph
    H12HS : 24,500 cph
    H08 : 11,500 cph
    H04 : 6,500 cph
    H04S : 9,500 cph
    H04SF : 10,500 cph
    H02 : 5,500 cph
    H02F : 6,700 cph
    H01 : 4,200 cph
    G04 : 7,500 cph
    G04F : 7,500 cph
    GL : 16,363 dph (0.22 sec/dot)



    H24G : 37,500 cph (Productivity priority mode) /35,000 cph (Standard mode)
    V12 : 26,000 cph
    H12HS : 24,500 cph
    H08M : 13,000 cph
    H08 : 11,500 cph
    H04 : 6,500 cph
    H04S : 9,500 cph
    H04SF : 10,500 cph
    H02 : 5,500 cph
    H02F : 6,700 cph
    H01 : 4,200 cph
    G04 : 7,500 cph
    G04F : 7,500 cph
    0F : 3,000 cph
    GL : 16,363 dph (0.22 sec/dot)



    Supported parts
    H24G : 0201 to 5 x 5 mm
    V12/H12HS : 0402 to 7.5 x 7.5 mm
    H08M : 0603 to 45 x 45 mm
    H08 : 0402 to 12 x 12 mm
    H04 : 1608 to 38 x 38 mm
    H04S/H04SF : 1608 to 38 x 38 mm
    H02/H02F/H01/0F : 1608 to 74 x 74 mm (32 x 180 mm)
    G04/G04F :0402 to 15 x 15 mm




    Height : up to 2.0 mm
    Height : up to 3.0 mm
    Height : up to 13.0 mm
    Height : up to 6.5 mm
    Height : up to 9.5 mm
    Height : up to 6.5 mm
    Height : up to 25.4 mm
    Height : up to 6.5 mm







    Module width 320 mm 645 mm
    Machine dimensions L: 1295 mm (M3 III x 4, M6 III x 2) / 645 mm (M3 III x 2, M6 III)
    W: 1900.2 mm, H: 1476 mm



    DynaHead(DX)
    Nozzle quantity 12 4 1
    Throughput(cph) 25,000
    Parts presence function ON: 24,000
    11,000 4,700
    Part size
    (mm)
    0402 (01005") to 7.5 x 7.5
    Height:
    Up to 3.0 mm
    1608 (0603")
    to 15 x 15
    Height:
    Up to 6.5 mm
    1608 (0603")
    to 74 x 74 (32 x 100)
    Height:
    Up to 25.4 mm
    Placing accuracy
    (Fiducial mark based referencing)
    +/-0.038 (+/-0.050) mm (3σ) cpk≥1.00* +/-0.040 mm (3σ)cpk≥1.00 +/-0.030 mm (3σ)cpk≥1.00
    Part presence
    check
    o x o
    Parts
    supply
    Tape o o o
    Stick x o o
    Tray x o o



    Parts supply system
    lntelligent feeders Support for 4, 8, 12, 16, 24, 32, 44, 56, 72, 88, and 104 mm wide tape
    Stick feeders 4 ≤ Part width ≤ 15 mm (6 ≤ Stick width ≤ 18 mm), 15 ≤ Part width ≤ 32 mm (18 ≤ Stick width ≤ 36 mm)
    Trays Applicable tray size: 135.9 x 322.6 mm (JEDEC standard) (Tray Unit-M),276 x 330 mm (Tray Unit- LT),143 x 330 mm (Tray Unit-LTC)



    Options
    Tray feeders, PCU II (Pallet Change Unit), MCU (Module change unit), Engineering panel stand, FUJI CAMX Adapter, Fujitrax
