Module Width 320mm Surface Mount Placement Machine Fuji Scalable Placement Platform NXT Ⅱ

Good quality SMT Feeder for sales
Good quality SMT Feeder for sales
Cooperated Several Times, Nice! Its Original Parts, Fast Delivery And Good Service!

—— Mr. Cordlier Mathieu

Sandy is Patient, Always Timely Answer us all kinds Problems About Machine And Parts. Very Professional,They are Good Partner.

—— Mr. Erica C Lagarry

Business Flourishes! Products Large Stocks, Parts Authentic,Delivery Fast, Price Reasonable!

—— Ms. Vicki

I'm Online Chat Now

Module Width 320mm Surface Mount Placement Machine Fuji Scalable Placement Platform NXT Ⅱ

China Module Width 320mm Surface Mount Placement Machine Fuji Scalable Placement Platform NXT Ⅱ supplier

Large Image :  Module Width 320mm Surface Mount Placement Machine Fuji Scalable Placement Platform NXT Ⅱ

Product Details:

Place of Origin: Japan
Brand Name: FUJI
Model Number: NXT II

Payment & Shipping Terms:

Minimum Order Quantity: 1unit
Delivery Time: within 2 weeks
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 3unit
Contact Now
Detailed Product Description
Brand: FUJI Name: FUJI Scalble Placement Platform NXT Ii
Module Width: 320mm Machine Dimensions: L:1295mm(M3 II×4, M6 II×2)
Lntelligent Feeders: Support For 4, 8, 12, 16, 24, 32, 44, 56, 72, 88, And 104 Mm Wide Tape Trays: Applicable Tray Size: 135.9 X 322.6 Mm (JEDEC Standard) (Tray Unit-M),276 X 330 Mm (Tray Unit- LT),143 X 330 Mm (Tray Unit-LTC)

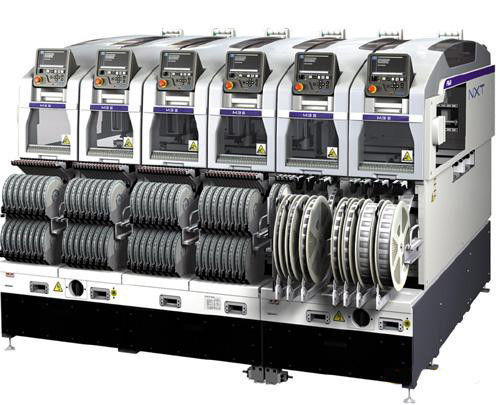

Fuji Scalable Placement Platform NXT Ⅱ

1. Special feature
1.1 Provide the best machine configuration for customers: NXTII is the only machine with a true modular concept. It is possible to freely install a combination of units such as a work head or a component supply unit and a transport track type to provide the optimum machine configuration suitable for all kinds of customers. You can simply use the tool to carry out the replacement work of the unit including the placement work head.
1.2 Can be used dual-track production: dual-carrying track machine can simultaneously produce heterogeneous circuit boards. In addition, because the board or transfer plate time is zero, increased productivity.
1.3 Just use the required quantity without causing too much of a problem: NXTII can be replaced and added with a module or placement head, so that the minimum amount of production is required with minimal investment.
1.4 To play an overwhelming advantage Corresponding to the changes in the form of production: NXTII scalability For coating adhesives, PoP placement, bare chip placement and other new forms of production, do not need to import special equipment can be replaced by the corresponding unit.


  • Specifications
 M3 IIM6 IIM6 IISP
Applicable PCB size
(L x W)
48mm×48mm~534mm×510mm(double conveyor)*
48mm×48mm~534mm×610mm (single conveyor)
*Double conveyors can handle PCBs up to 280 (W) mm. PCBs larger than 280 (W) mm must be produced by changing the double conveyor to single lane production mode.
48mm×48mm~520mm×510mm(double conveyor)*
48mm×48mm~520mm×610mm(single conveyor)
Part typesUp to 20 types of parts (calculated using 8 mm tape)Up to 45 types of parts (calculated using 8 mm tape)Up to 44 types of parts (calculated using 8 mm tape)
PCB loading timeFor double conveyor: 0 sec (continuous operation)
For single conveyor: 2.5 sec (transport between M3 III modules),
3.4 sec (transport between M6 III modules)
Placement accuracy
(Fiducial mark standard)
V12/H12HS:±0.038(±0.050) mm (3σ) cpk≧1.00※
H08M/H04S:±0.040mm (3σ) cpk≧1.00
H08/H04/0F:±0.050mm (3σ) cpk≧1.00
H02/H01/G04:±0.030mm (3σ) cpk≧1.00
GL:±0.100mm (3σ) cpk≧1.00




H12HS±0.038mm(3σ)
H02/H01/G04±0.010mm(3σ)




Productivity
V12:26,000 cph
H12HS:22,500 cph
H08:10,500 cph
H04S:9,500 cph
H04:6,500 cph
H02:5,500cph
H01:4,200 cph
G04:6,800 cph
0F:do not carry
GL:16,363 dph
(0.22sec/dot)



V12:26,000 cph
H12HS:22,500 cph
H08M:13,000 cph
H08:10,500 cph
H04S:9,500 cph
H04:6,500 cph
H02:5,500 cph
H01:4,200 cph
G04:6,800 cph
0F:3,000 cph
GL:16,363 dph
(0.22sec/dot)



V12:do not carrry
H12HS:18,500 cph
H02:4,700 cph
H01:3,500 cph
G04:6,200 cph



Supported parts
V12/H12HS:0402~7.5mm×7.5mm
H08M:0603~45mm×45mm
H08:0402~12mm×12mm
H04S/H04:1608~38mm×38mm
H02/H01/0F:1608~74mm×74mm(32mm×180mm)
G04:0402~15mm×15mm




 :up to3.0mm
 :up to13mm
 :up to6.5mm
 :up to6.5/9.5mm
 :up to25.4mm
 :up to6.5mm





Module width320mm645mm
Machine dimensionsL:1295mm(M3 II×4, M6 II×2) / L:645mm(M3 II×2, M6 II)
W:1900.2mm H:1474mm(M3 II) / 1476mm(M6 II,M6 IISP)
Parts supply system
lntelligent feedersSupport for 4, 8, 12, 16, 24, 32, 44, 56, 72, 88, and 104 mm wide tape
Stick feeders4 ≤ Part width ≤ 15 mm (6 ≤ Stick width ≤ 18 mm), 15 ≤ Part width ≤ 32 mm (18 ≤ Stick width ≤ 36 mm)
TraysApplicable tray size: 135.9 x 322.6 mm (JEDEC standard) (Tray Unit-M),276 x 330 mm (Tray Unit- LT),143 x 330 mm (Tray Unit-LTC)
Options
Tray feeders, PCU II (Pallet Change Unit), MCU (Module change unit), Engineering panel stand, FUJI CAMX Adapter, Fujitrax
